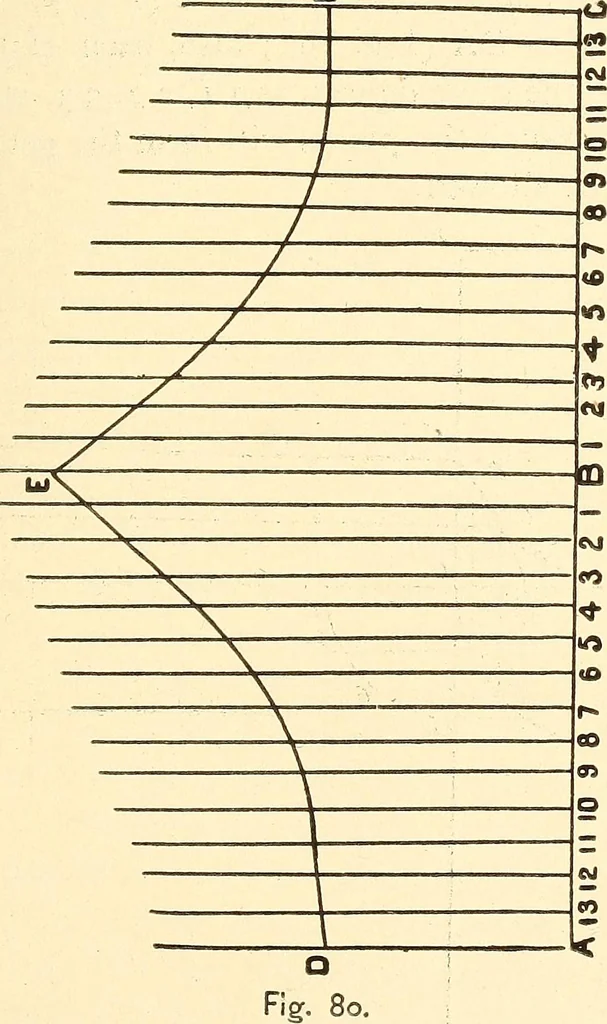

and CF; set off on each side of BE the same number ofequal distances as in the semicircle, and from the pointsdraw lines parallel to BE, as i i, 2 2, etc.; make BE equal PIPES. 63 to AC in Fig. 77 ; make AD and CF equal to BE (Fig. 77);also, each of the parallel lines bearing the same figures ;make… … To describe a Pattern for a T Pipe at any Angle, the Col-lar to be set on one side of the Main Pipe.—Let the circleFE (Fig. 79) equal a large pipe or boiler; make AB equalto the diameter of the collar or branch pipe, BE the angle 64 TIN, SHEET-IRON AND COPPER-PLATE WORKER. required; describe the…
