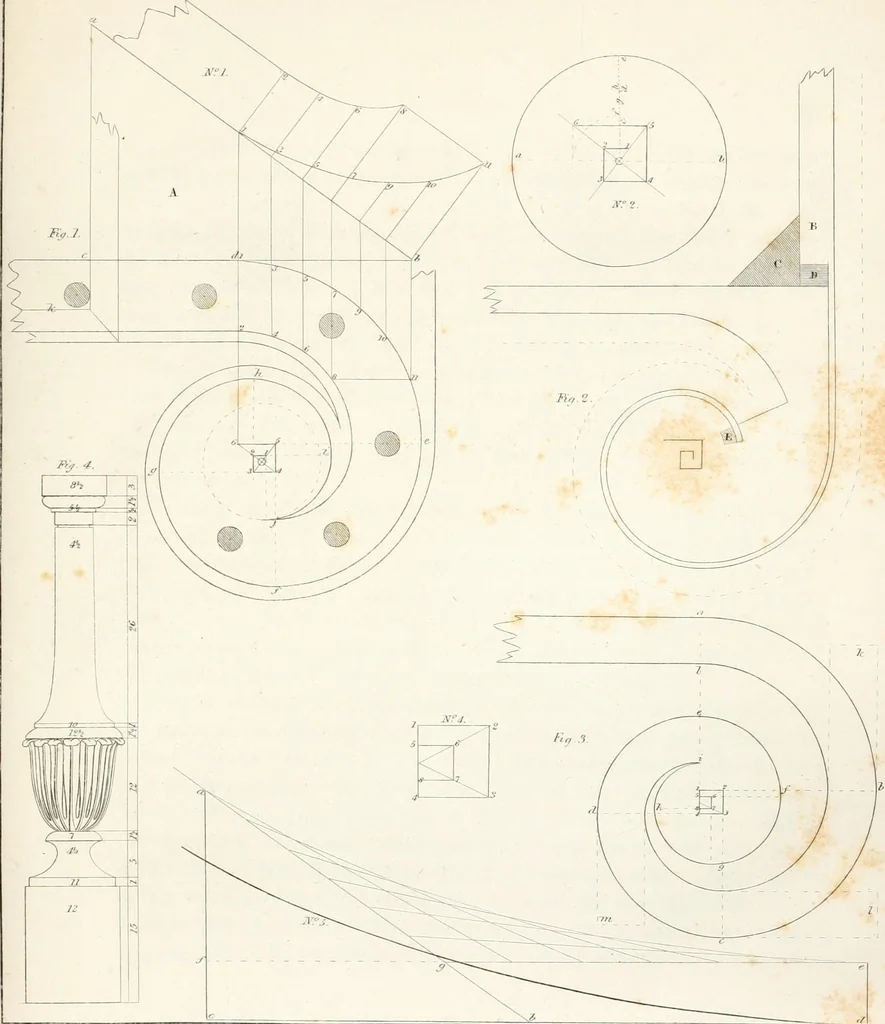

draw f e; on G, draw e d; which com-pletes the outside circle. The inside line, and also those of thenosing of the steps, are drawn from the same centres. To draw the face mould, No. 1, the rail is supposed to be gluedto the scroll at the line 8 11. A exhibits the pitchboard; c h, thebase line ;… … STAIRS. 95 across the pitchboard to the raking line a b. At right angles witha b, continue them across the face mould, No. 1. From the linea b, make each of the lines 3, 5, 7, 9, 10, and 11, equal to the cor-responding lines from the line d b to the edge of the rail 3, 5, 7, 9,10 and 11. Make also…
