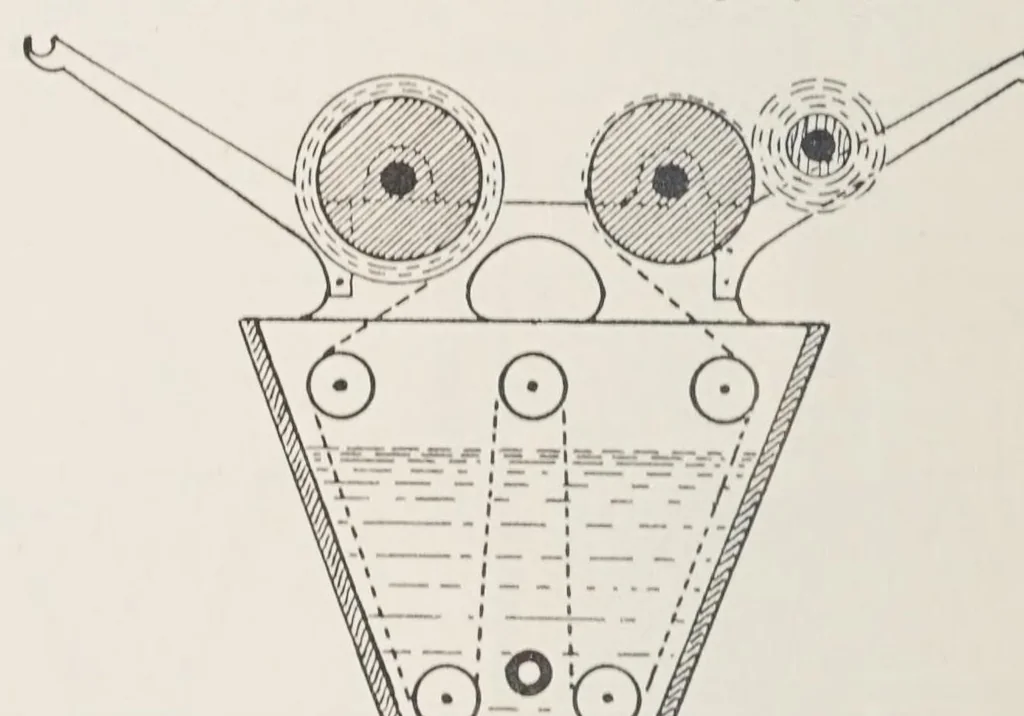

y dung becks,” (seo fig. 57), (3) and of slop-padding mangles (see figs. 49 and 50), In the rope form, cloth is nowadays invariably dyed in spiral dye becks, of which various types exist, ig. 59 shows a section of the ‘“jigger,” a machine largely used for dyeing plain shades, but which does not… … discharge on tannin-mordanted cloth, In this style, when the same design is required in small lots of different colours, the “jigger” affords an economical means of dyeing the comparatively short lengths into which the order is split up. The “jigger” consists of an iron or wooden dye beck fixed…
