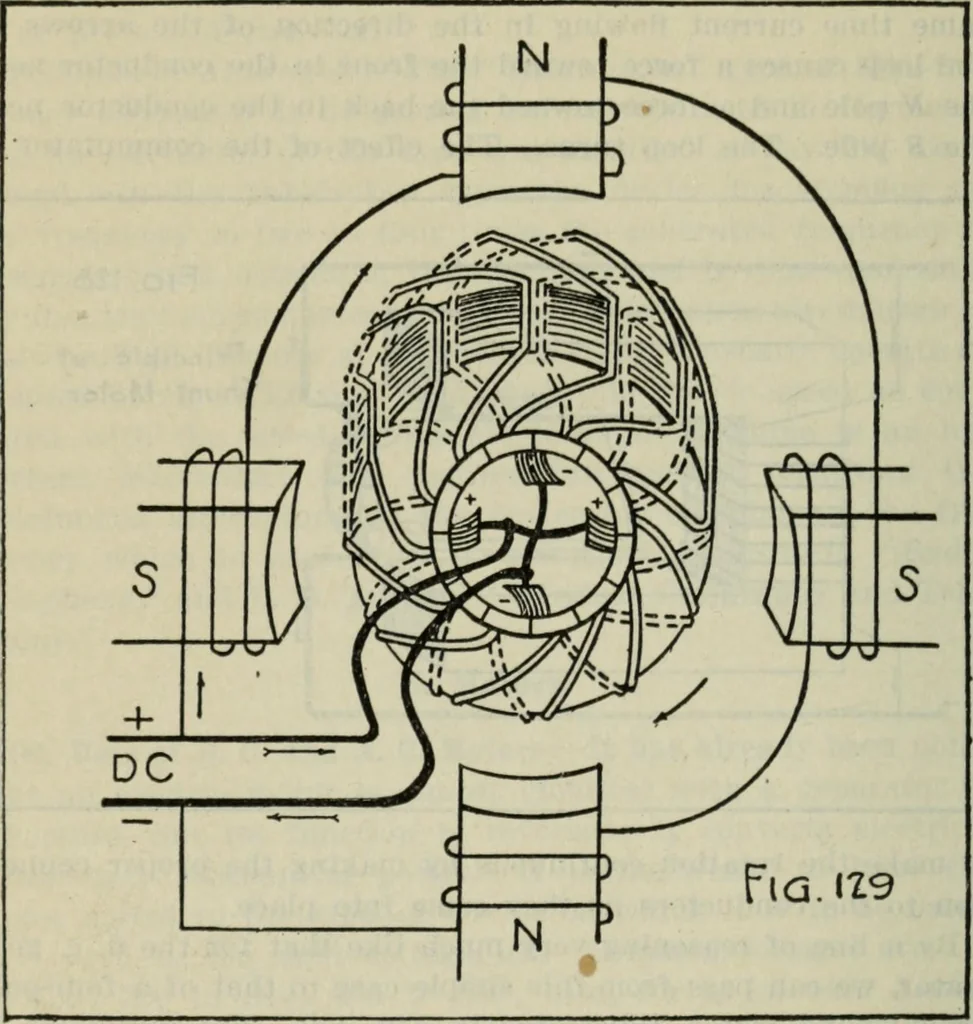

as the armature begins to rotate, it generates an emf.according to the right-hand rule.21 This action is exactly the-same as in a generator. 21 See Section G3, page 153. 212 I) YNA MO-ELECTRIC MACHINERY. The emf. generated is opposite to the direction of currentshown by the arrows, and is for that… … Fig. 129.—Diagram of circuits of a 4-pole shunt motor. the two would balance; there would be nothing to make thecurrent flow through the armature, and consequently no pullto keep it turning. For example, suppose the armature resis-tance of a certain motor is 0.25 ohm. and suppose that a currentof 4…
