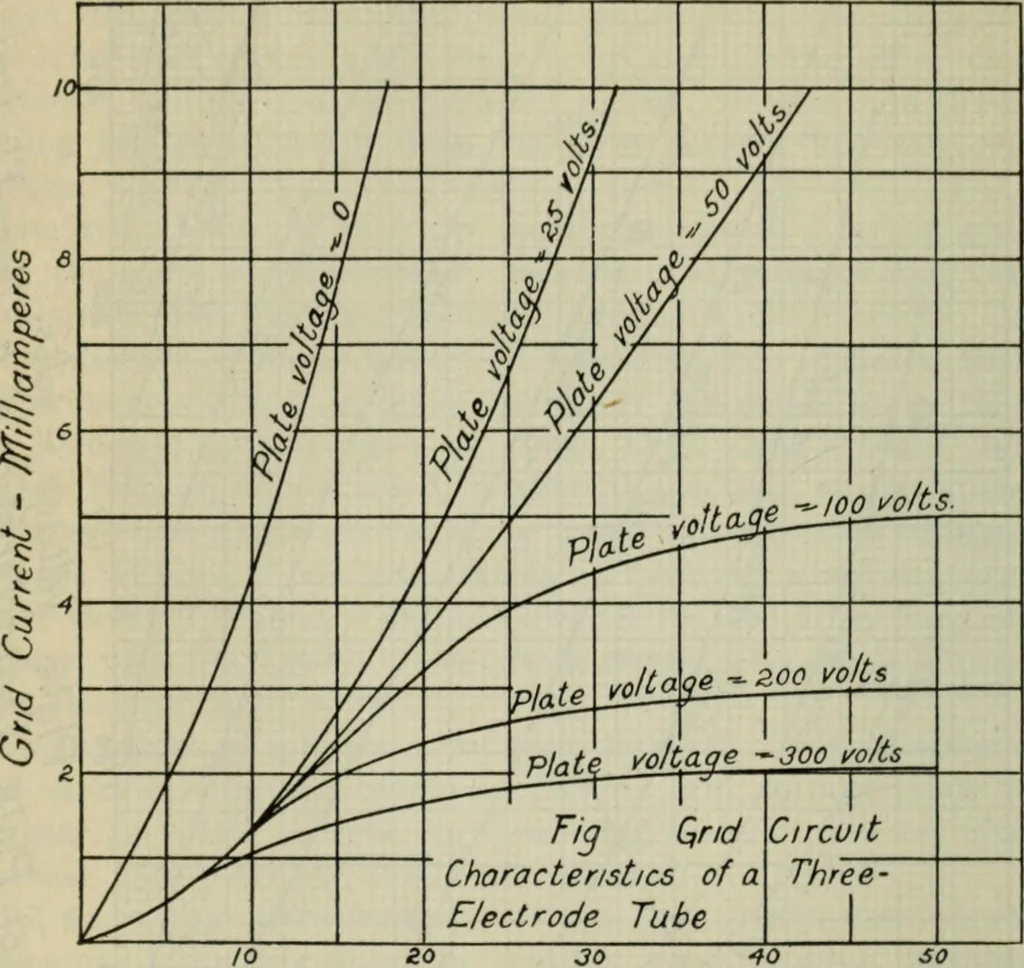

rid voltage, for example, is —10, then the plate voltagewill be 220 volts and the plate current 16 milliamperes, as de- 466 ELECTRON TUBES. termined in Fig. 2G1 by the intersection of the dotted line andthe curve marked Grid voltage=—10. In other wordsthese values nn> both consistent with the… … F/G-26Z Grid Voltage - volts known, then all the other quantities are determined by the tubecharacteristics. Thus, if the grid voltage at any instant can be found fromthe equation er=—10+60 sinarf—that is, if a sine wave voltageis impressed upon the grid, between limits of —70 and +50volts—then the…
