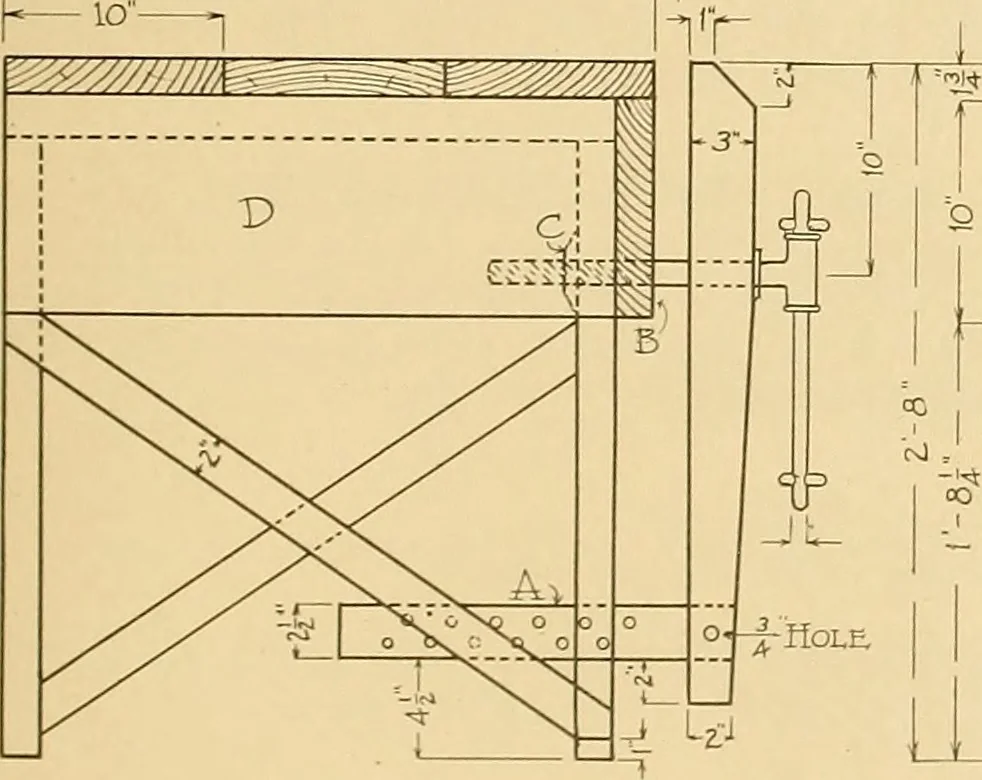

^ holes thru this leg in position shownin drawing. Cut out and nail at the upper end of this pairof legs piece D in drawing, and No. 4 in bill of stock.Mark out and cut the braces, Nos. 5 and 6 in bill of stock,and nail into position. These braces are used to supportthe vise, the other pair of legs… … n L LjJU4 — 18 - 8TOIZ •° -^ [ lioms Foil Teg5- Pk,avee.ToCo ]N End -4J 28 PROBLEMS IN FARM WOODWORK Bore holes in piece No. 7 in bill of stock, marked A indrawing. Bore these in line with holes in leg to insureproper fitting of wooden pins. Work piece No. 8, or vise head, to dimensions given…
