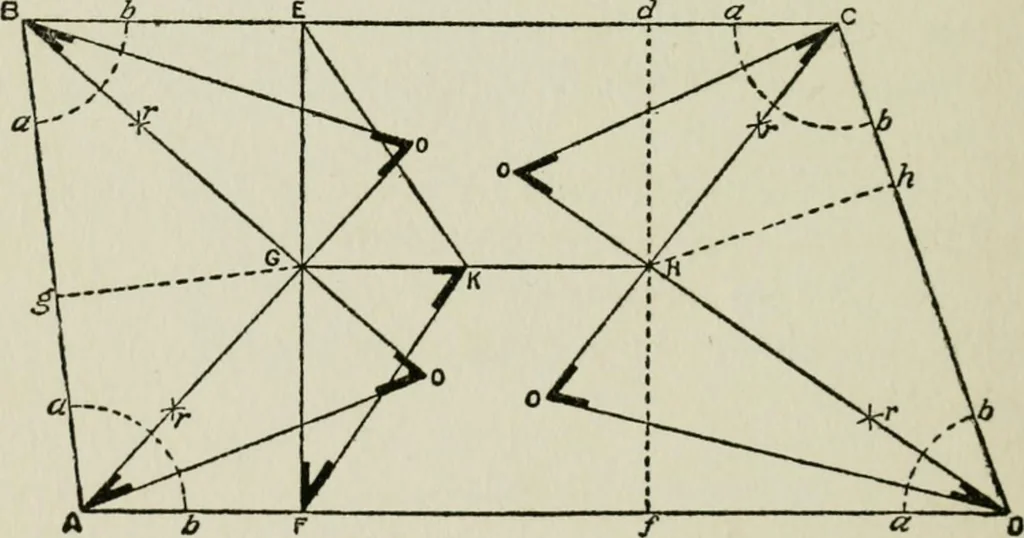

f the roof.5th. The length of the common rafter. 126 PRACTICAL CARPENTRY 6th. The angle that the hip-rafter makes with the adjoining sides of the roof.7th. The length of the hip-rafters.8th. The distance from the corner of the build-ing to the center line of the first jack;that is, the common… … FIG. 147 the middle of the distance between them. Fromthe points A, B, C, D, with any radius, describethe curves ab, ab, cutting the sides of the planeat a, b. From these points, with any radius,bisect the four angles of the plan at r, r, r, r, andfrom A, B, C, D, through the points, r, r, r, r,…
