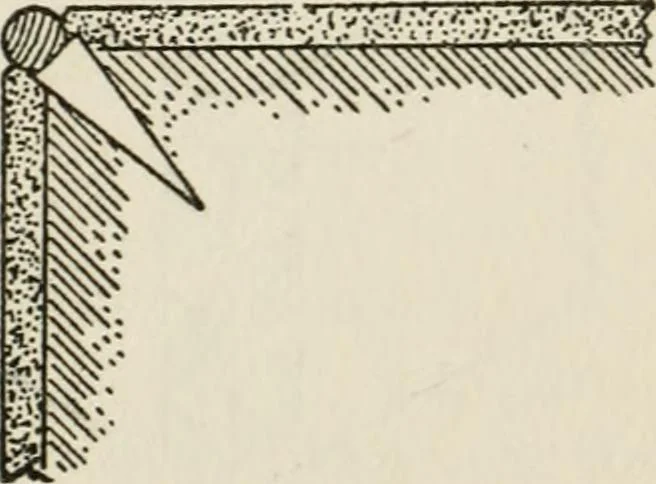

FIG, 205 PRACTICAL CARPENTRY 259 Keyed mitered joints are not often used; but itis as well that the carpenter should know whatthey are. Fig. 214 is a view of the angle of one,XX being hardwood-slips let into the miters. l/^>Aj FIG. 206 FIG. 207 Housed joints are as Fig. 215, by which thewhole… … FIG. 211 260 PRACTICAL CARPENTRY K i>/>j I n lA^s] I FIG. 212 FIG. 213 lapped joints secured by blocks glued to each pieceof wood in the internal angle (Fig. 216). Dovetails.—^To make a good dovetail joint re-quires considerable skill and care on the part of the
