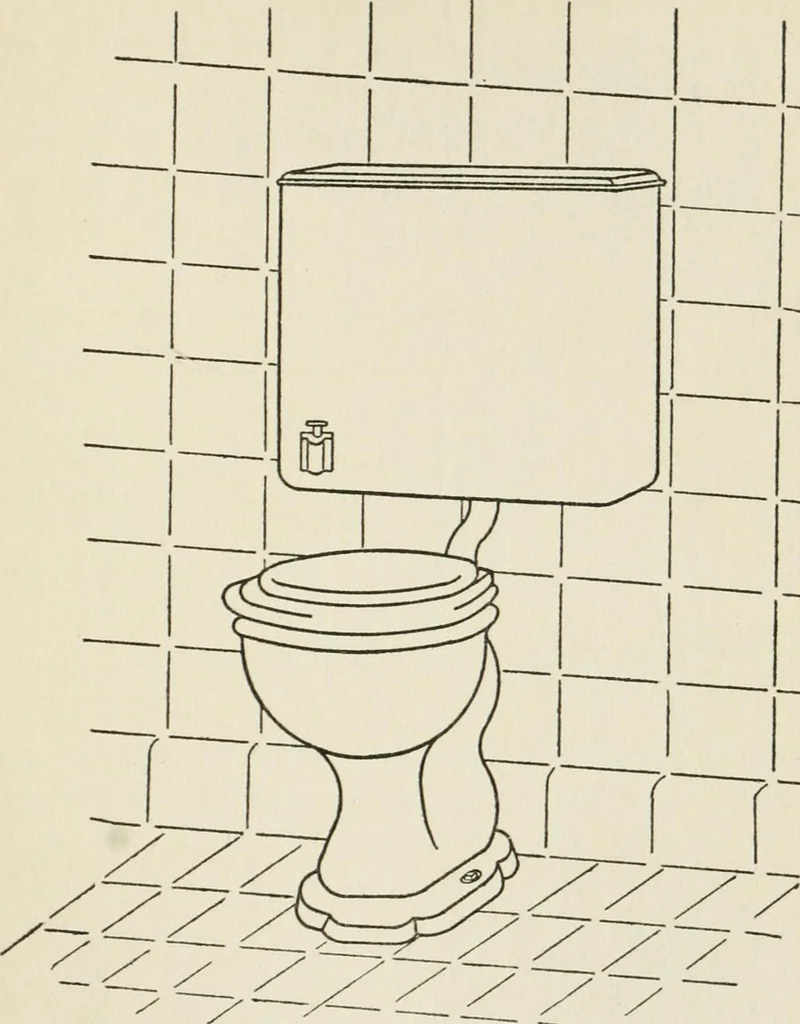

h was left for thevents, we screw a 2x11/2x11/2 tee with nipple ofright length, and drop out of the side oi^eningto the basement for the wash trays, and out ofthe end opening to the sink. Here we shall needfor the sink, and also for the trays, a IV^-inchfemale soldering nipple, and about 15 inches… … Fig. 18. Low-Tank Tjrpe of Water-Closet. we are through with this stack until time forsetting the fixtures. It will be seen that when we set these fix-tures, it will be necessary to wipe a joint be-
