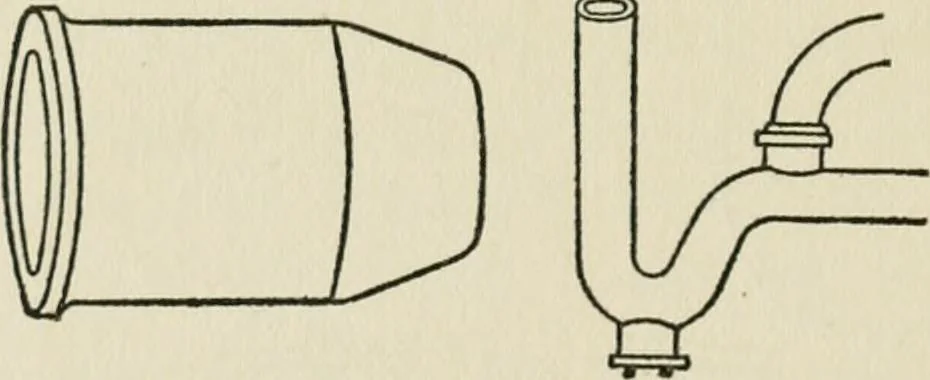

ee used on this in-stallation, and less the side opening, this is thefitting ordinarily used. Fig. 26 shows a straight brass ferrule; andFig. 29 shows a tapered brass ferrule, reducingdown to the size of the waste-pipe used. Fig. 28 shows the solder nipple used on thevent work, and this is made… … n \j Tig. 29. TaperedBrass Ferrule. Fig. 30. A Style of Trap Often Used on Bathtubs. Fig. 31. Tee forContinuous Vent-ing with LeadWaste and VentPipes. Fig. 30 shows another style of trap that isused extensively on bathtubs. Fig. 31 shows another form of tee that canbe used for the continuous style…
