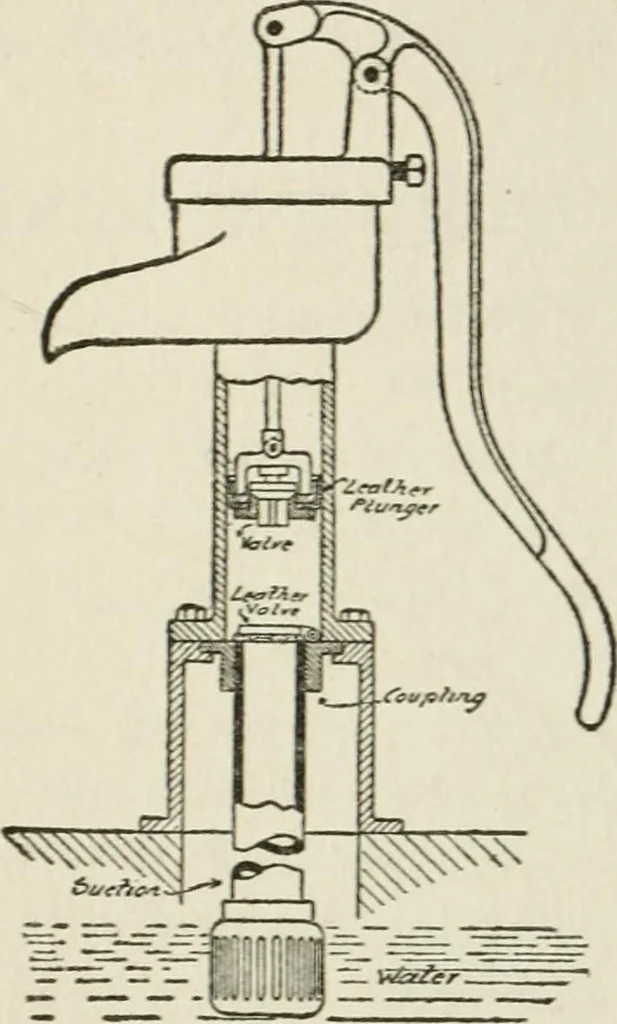

re-versing the handle, and pushing the piston downinto the cylinder, the air, being compressed,closes the lower or inlet valve, and forces theupper valve open, which allows the ail withinthe cylinder to escape through the hole in the … Fig. 112. Common Lift Pump. piston, xit the end of the stroke, the aii whichwas contained in the cylinder has been pushedout through the piston and above it, and this aii-is lifted out of the pump by the next upwardstroke. A few strokes will remove the remain-ing ail from the suction pipe; and the…
