Radford's cyclopedia of construction; carpentry, building and architecture. Based on the practical experience of a large staff of experts in actual constrcution work (1909)
Johnson, Alfred Sidney, 1860-, Radford, William A., 1865- · Chicago Radford Architectural Co · leaf 96

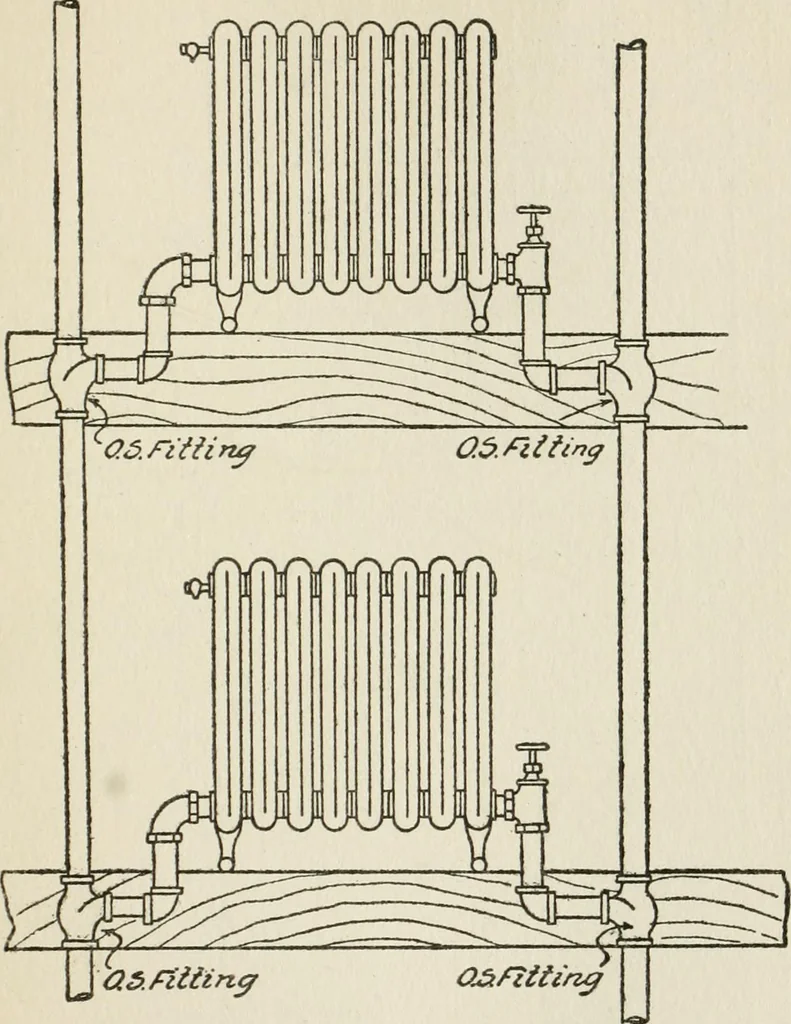

Fig. 47. O. S. Distributing Fitting, When two radiators on the same floor arefed by a riser, the larger one should be supplied HEATING AND VENTILATION 75 from the top of the riser, and the smaller radi-ator from the side of the riser, as shown inFig. 46. … C13. fitting Fig. 48. Method of Applying O. S. Distributing Fittings to Risers. The reason why the connections are made inthe manner shown by the various illustrations,is that hot water in circulation has a tendencyto flow quickly to the top of the system, and, by
