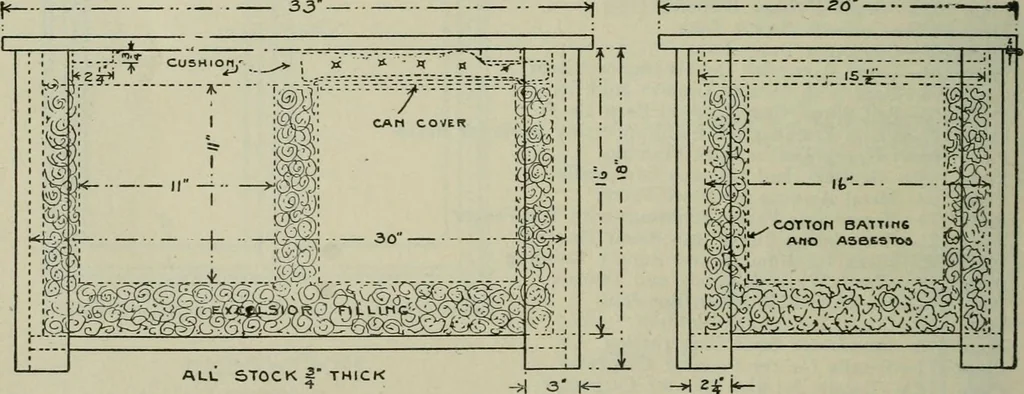

inches.4 verticals (frame), 1% by 3 by 30*inches, S-4-S.1 piece (top), 2% by 5 by 22% inches, S-4-S.1 piece (top), 2% by 2% by 22% inches, S-4-S.8 pieces (top), 23/8 by 1% by 46% inches, S-4-S. 1 piece (top), 1 by 8 by 46% inches, S-2-S.1 piece (top), 1 by 2% by 52 inches, S-4-S. 1 piece (top), 1… … -m «**h- PLATE 135 A—HOW TO MAKE A FIRELESS COOKER Material Required Lid, 1 piece, % by 20% by 33% inches, S-2-S.Sides, 2 pieces, % by 16% by 30% inches, S-2-S.Ends, 2 pieces, % by 16% by 16% inches, S-2-S.Bottom, 1 piece, % by 18 by 30% inches, S-2-S. Posts, 4 pieces, % by 2% by 18% inches,…
