Radford's portfolio of details of building construction : a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale ... (1911)
Radford, William A., 1865-, Johnson, Bernard L, Rawson, Charles P · Chicago : The Radford Architectural Company · leaf 153

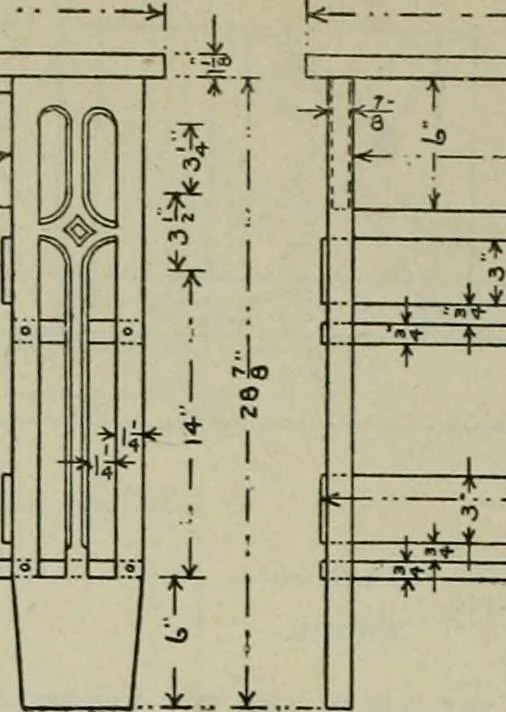

y 5% by 26y2 inches, S-4-S. S-4-S. S-4-S. Side rails, top of, 2 pieces, % by 1% by 26%inches, S-4-S. Moulding under top, 2 pieces, %-inch cove, 26%inches. Side rails, 2 pieces, 1 by 2% by 26% inches,S-4-S. Slats for back and sides, 13 pieces, % by 5 by1334 inches, S-4-S. Seat frame, 2 pieces, 1% by… … 27| 3 E.MD -HliK- PLATE 139 B—LIBRARY TABLE WITH BOOK SHELVES Material Required Top, 1 piece, 1% by 32% by 54% inches, S-2-S. Backs for shelves, 4 pieces, % by 3% by 31 Side rails, 2 pieces, % by G^ by 42 inches, inches, S-2-S. S-2-S. Stretcher, 1 piece, % by 8^4 by 42 inches, S-2-S. End rails, 2…
