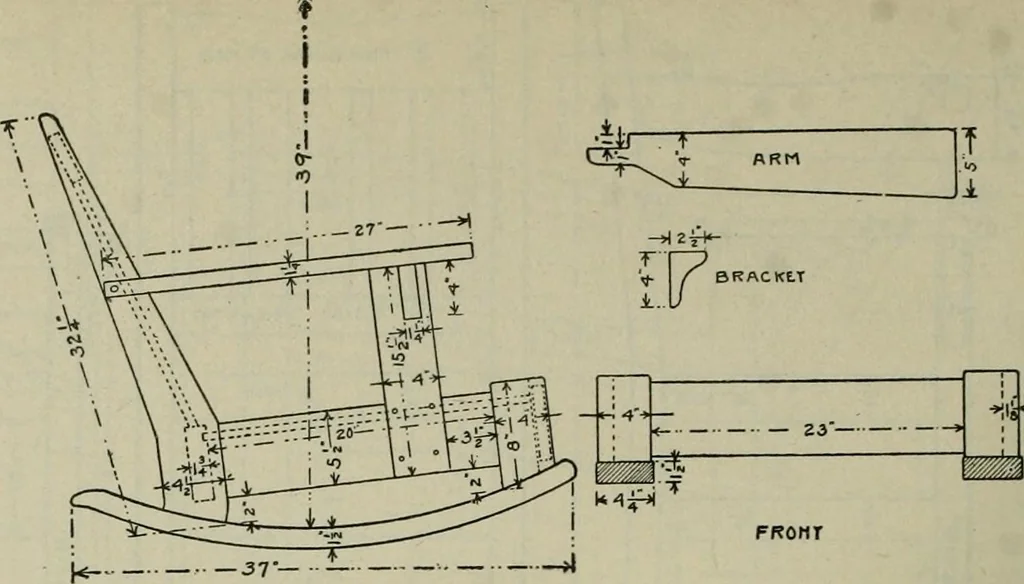

ece, % by 3y2 by 20%.horizontal, 1 piece, % by 4y2 by 20y2.horizontal, 1 piece, % by 2 by 20y2 inches. horizontal, 1 piece, % by 2y2 by 19% % by 3y2 by 19%.% by 2y2 by 17%.% by 21/4 by 171/4. Back horizontal, 1 piece,Side horizontal, 2 pieces,Side horizontal, 2 pieces,Side horizontal, 2 pieces, %… … FROMT PLATE 143 B—HOW TO MAKE A BIG EASY ROCKER Material Required Back posts, 1 piece, 1% by 8 by 34 inches, S-2-S. Back rail, 1 piece, 1% by 5V2 by 22 inches,S-4-S. Back rail, 1 piece, % by 4 by 22 inches, S-4-S. Back slats, 5 pieces, % by 2% by 30% inches,S-4-S. Brackets, 2 pieces, 1*4 by 2% by…
