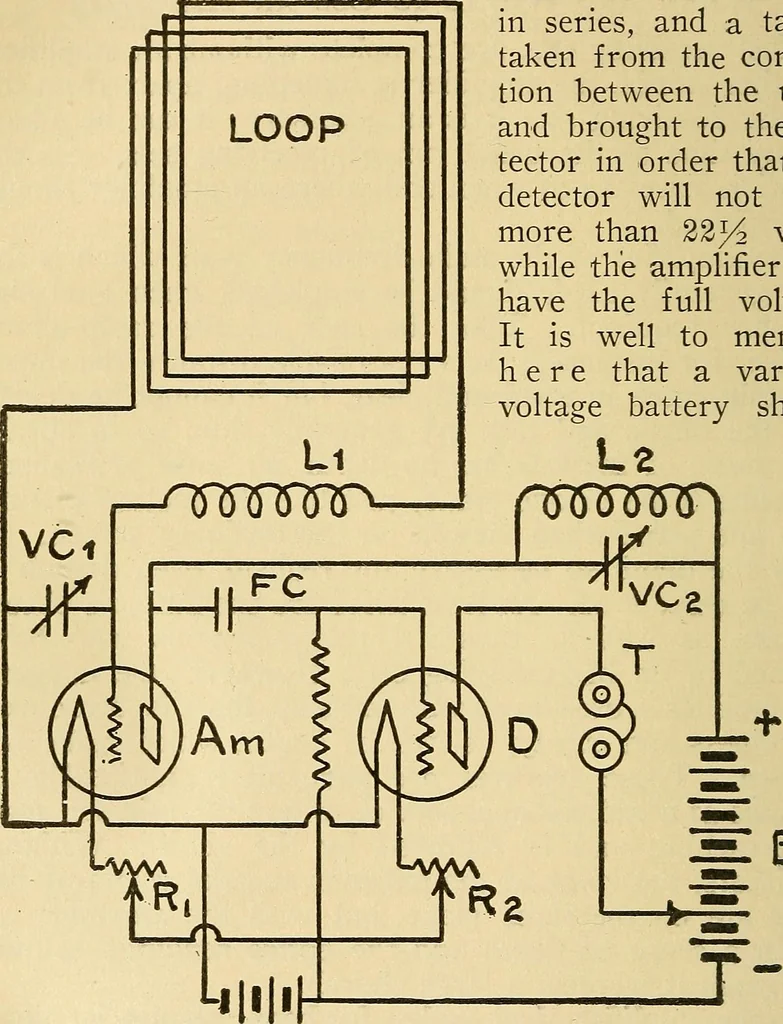

, it requires a filament 190 RADIO FOR EVERYBODY battery and a high-voltage B battery. When telephonehead sets are to be used, only 45 volts is required for theB battery. In that case two B battery units of 22/4 volts each are connectedin series, and a tap istaken from the connec-tion between the… … How the radio-frequency amplifier is used with the loopantenna for long distance reception. VC 1—variable con-denser across loop terminals; L. 1 and Li 2—inductance coils;VC 2—variable condenser; FC—fixed condenser; Am—amplifiertube; D—detector tube; T—telephone receivers; B—plate bat-tery;…
