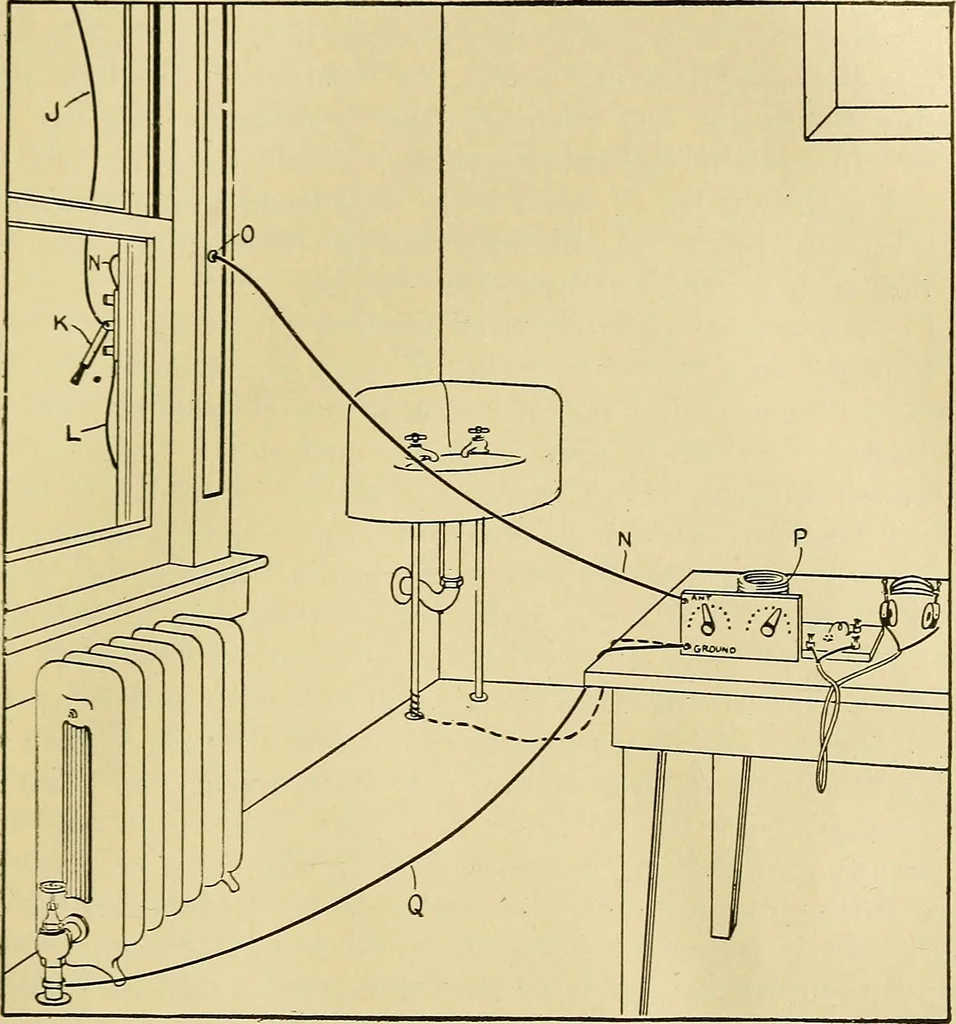

he lightning switch; it maybe a piece of the same size wire as used in the antenna,of sufficient length to reach from the lower clip of thelightning switch (K) to the clamp on the ground rod f M). M is a piece of iron pipe or rod driven 3 to 6 feet into RADIO FOR EVERYBODY 283 the ground,… … Fig:. 2.—Arrangement of receiving- instrument and connectionswith antenna and ground.. J—lead-in wire; K—lightningswitch; Jj—ground wire; N—lead to receiving set; O—insu-lating tube; P—receiving set; Q—ground for receiving set. N is a wire leading from the upper clip of the lightningswitch through…
