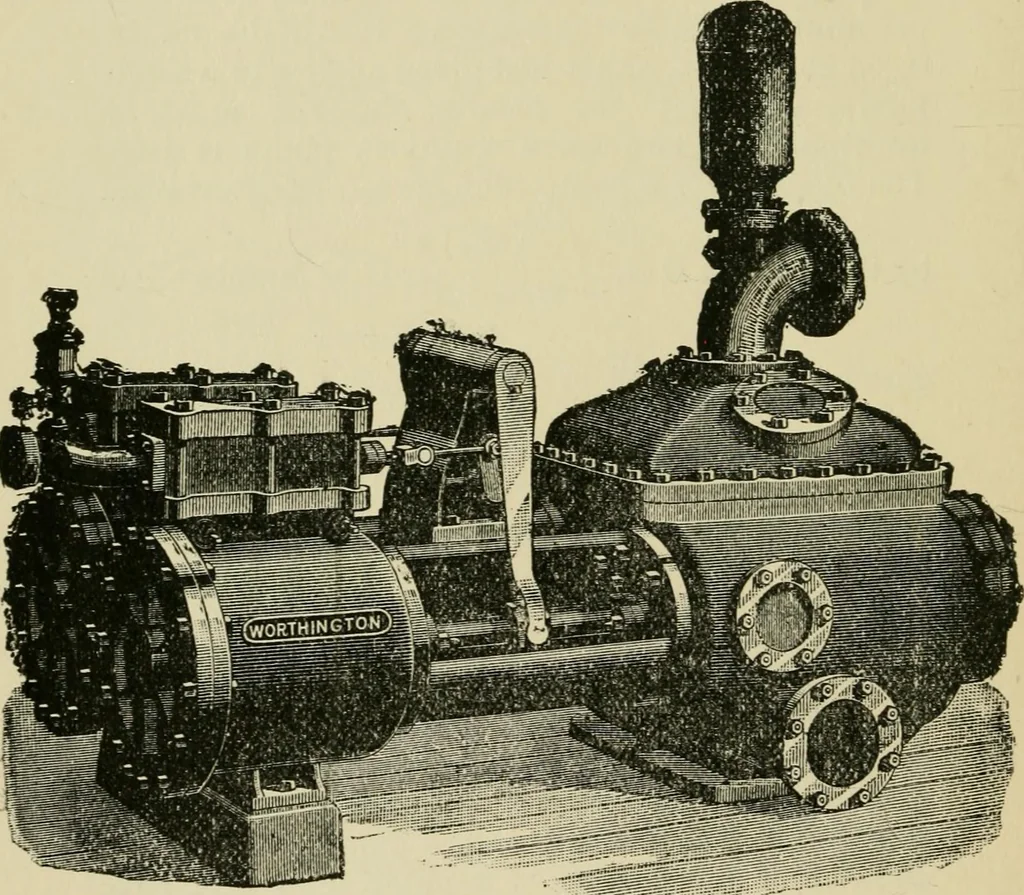

pose isprobably the best type to use, as the liability ofsticking is much miniaiised. The valve spindle isactuated by a vibrating arm worked from a cross E 66 head at the end of the spindle, so that an easy buteffective movement is given to it. The plungerworks through a metallic ring or barrel… … Fig. 23. valves are at the lower part of the casing, so thatany grit or mud has a chance to fall before enteringthe barrel, thus avoiding damage. The deliveryvalves are at the top of the casing, and the course givento the water is nearly a straight one. The valves areall of large area, and can be…
