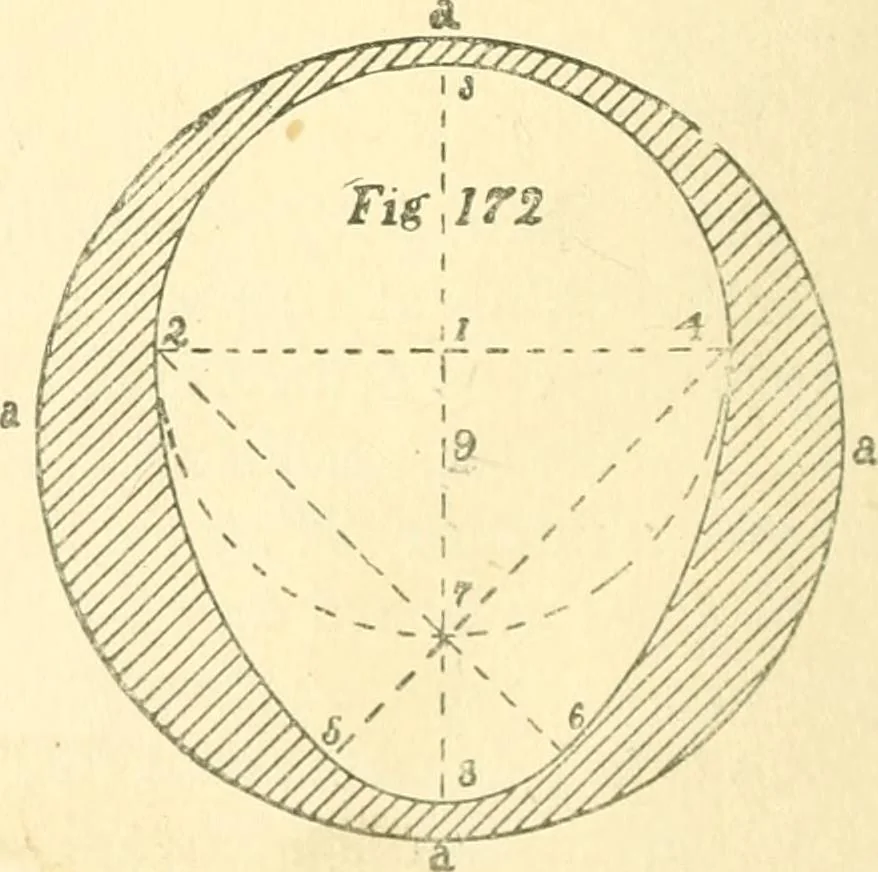

oHnes at right angles to eachother, as 2 4 and 3 8, Fig.172 ; make 2 4 about eightinches long; with i as cen-tre and I 4 as radius, drawa circle; now draw linesfrom r and 4 through 7;then, wiih 2 4 as radius and2 4 as centre, draw the arcs 4 6 and 2 5 ; now, with 7 ascentre and 7 6 as radius, draw… … FOR CARPENTERS AND MECHANICS. 119
