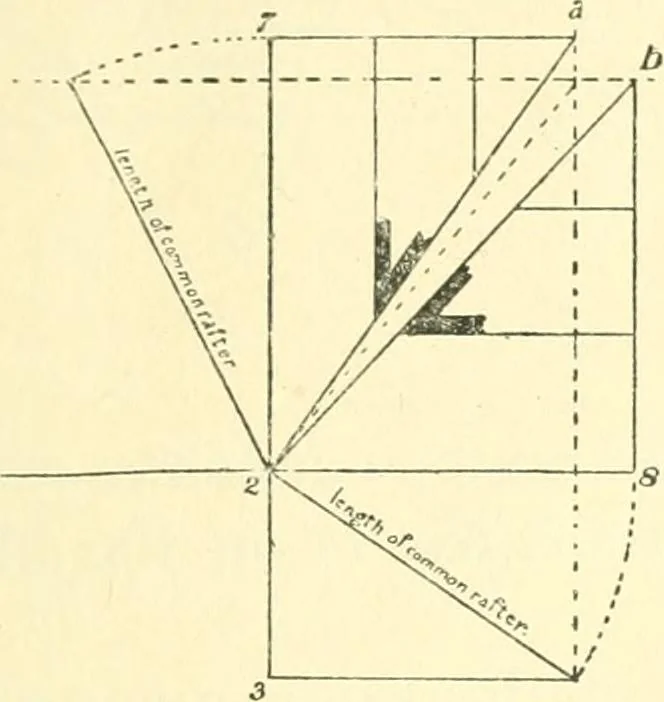

^ig. w c at right angles to the seat of the valleys, making itequal to a c; then 2 d and 5 d. Show the lengths andcuts of the valleys. In Fig. 11 we divide the buildinginto two parts, as shown by the lines representing the FOR CARPENTERS AND MECHANICS. 17 plates of the building, i, 2, 3 and 4, 5,… … a 1 3_ n; \ — — r- > \ v-y ^ \ 0^/ ^ -v<y/ 1 5 1 ^h^y^ ! ^ > , \p^ ng.ii positions ; then draw the ridge line, as 7 (2, ^ 10, 8 <5 and9 c. Then draw the valley lines, as 2 a, 2 b, ^ c and 5 dywhich show the position of the valleys if they w^ere droppeddown to a level. Then draw the…
