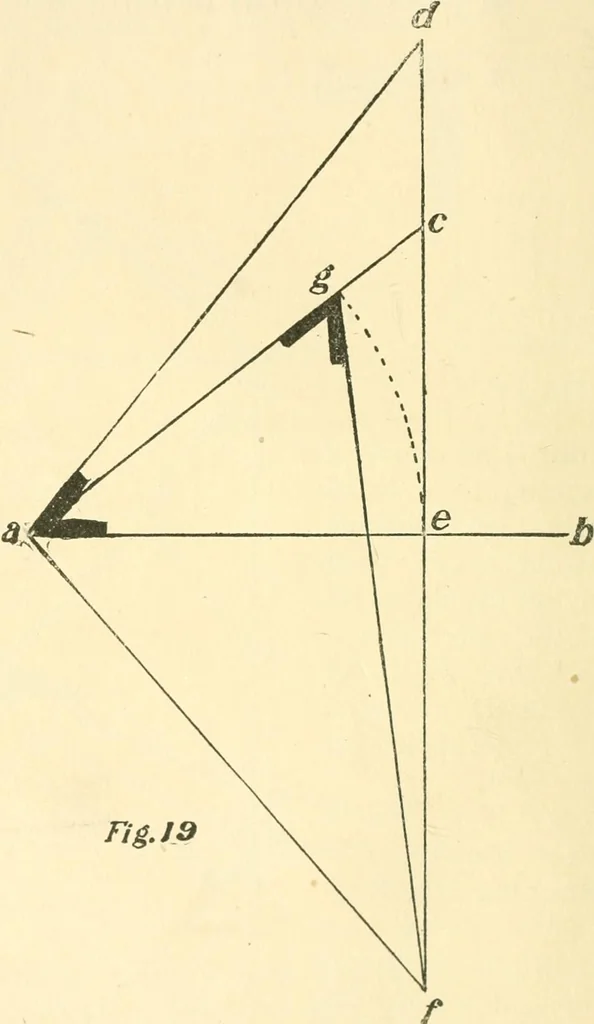

he Bevels to Mitre Purlins, whenthe Purlin Sets Square with the Rafters.—Draw a c e, represent-ing the slopeof the roof ;then continuec e, making- itequal in lengthto a c, 2iS d e;connect a andd, thus findingthe bevel forthe top or faceof purlins, asshown at a.Now drop theper pen dicu-lar from e… … CHAPTER III. To Find the Bevels to Cut SJuathing for a Roof—To Get the Bevels of Chords or Purlins of a Square Steeple—To Get the Bevels of the Chords or Purlins of an Octagon Steeple— To Find the Bevels to Cut tlie Braces for a Square Steeple— To Find the Bevels to Cut the Braces for an Octagon…
