Richey's guide and assistant for carpenters and mechanics : a work of practical information, giving almost every geometrical and practical problem likely to arise in the work of the carpenter, and quick and easy methods for their solution : the use of the steel square, etc., tables showing strength and weight of materials, methods of framing, useful recipes, etc., etc. (1894)

Richey, H. G. (Harry Grant), b. 1868 · New York : W.T. Comstock · leaf 33

An illustration from Richey's guide and assistant for carpenters and mechanics : a work of practical information, giving almost every geometrical and practical problem likely to arise in the work of the carpenter, and quick and easy methods for their solution : the use of the steel square, etc., tables showing strength and weight of materials, methods of framing, useful recipes, etc., etc., 1894, leaf 33

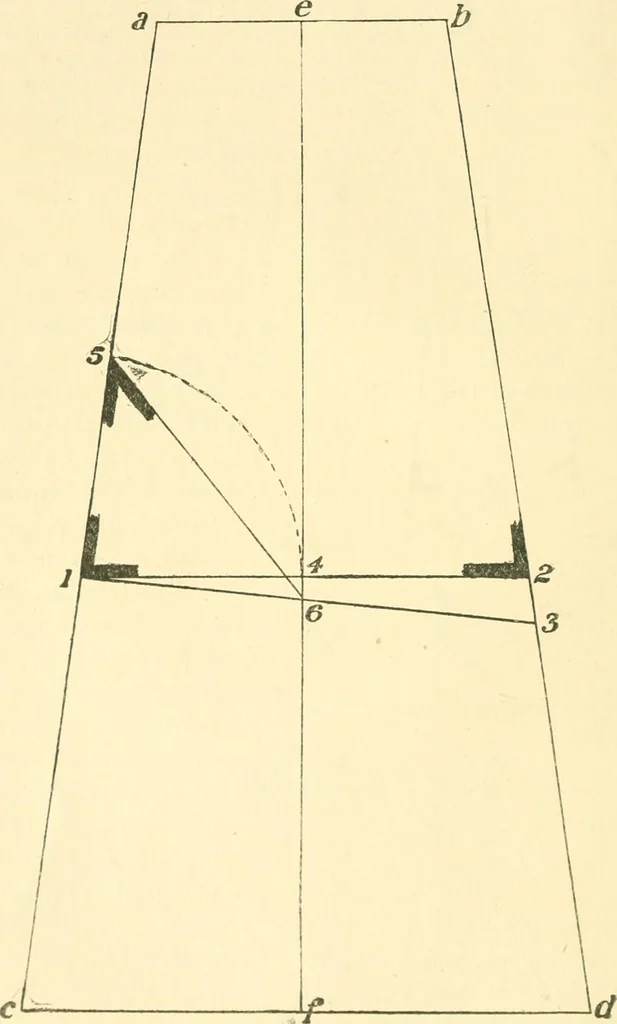

26 GUIDE AND ASSISTANT 23—To Get the Bevels of Chords or Purlins ofa Square Steeple.—Draw a section of one side of thesteeple, as a b c d, Fig, 21, and draw the centre line, e f. … Fig. 21 FOR CARPENTERS AND MECHANICS. 27 Now draw the line of purlin as i 2. The bevel at i or 2will be the bevel for the face of the purlin. Now draw a line from i at rightangles to ^ ^, as i 3; makeI 5 equal to one-half ofI 2; connect 5 and 6, andthe bevel at 5 will be thebevel for the top or…

Carpentry
