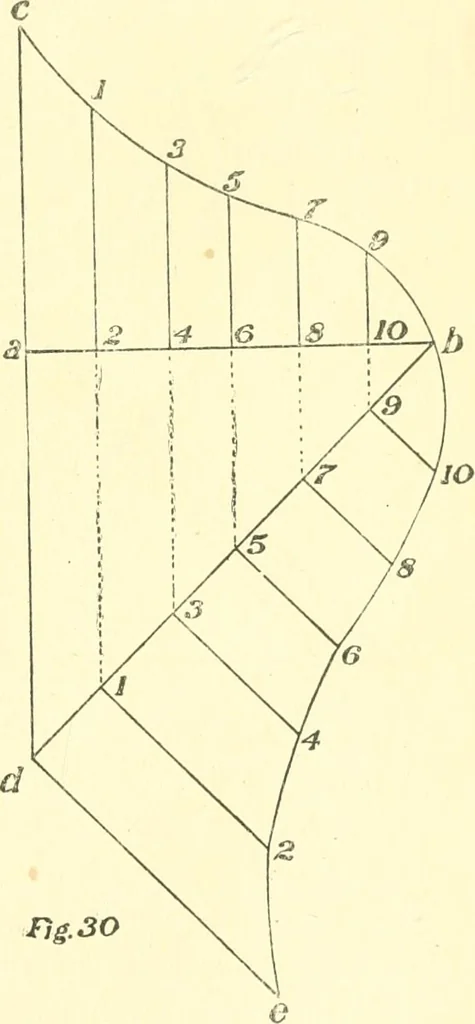

fig. 30 to a d, Fig. 27. The bevel at d is the bevel to cut thebottom. The same bevel is used on all four sides of thestick. 29—To Find the Profile of Hips and Valleys forany Curve Roof.—Let a b, Fig. 30, be the seat of thecommon rafter and c b the profile; now draw the seat of 32 GUIDE AND…
