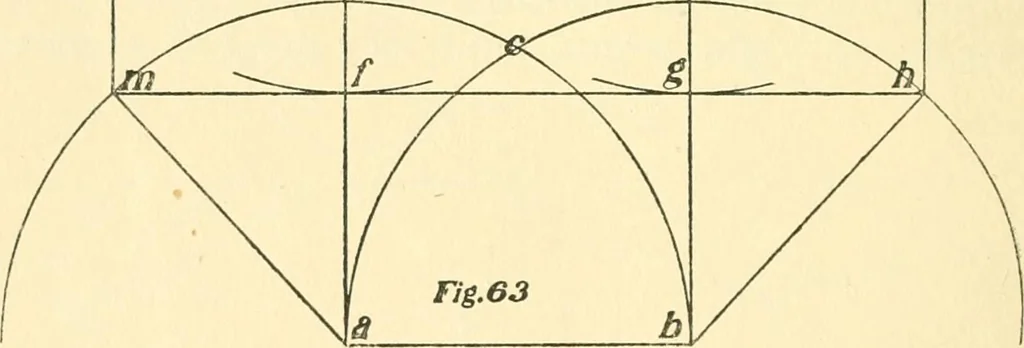

58—To Draw an Octagon when the Side or Baseis Given.—Draw the Une, a b, for the base. Fig. 63, andfrom a and b draw two indefinite perpendicular lines ; thentake the distance from ^ to <^ and describe the two half-circles ; then, using the same radius, from point c findpoint d on the…
