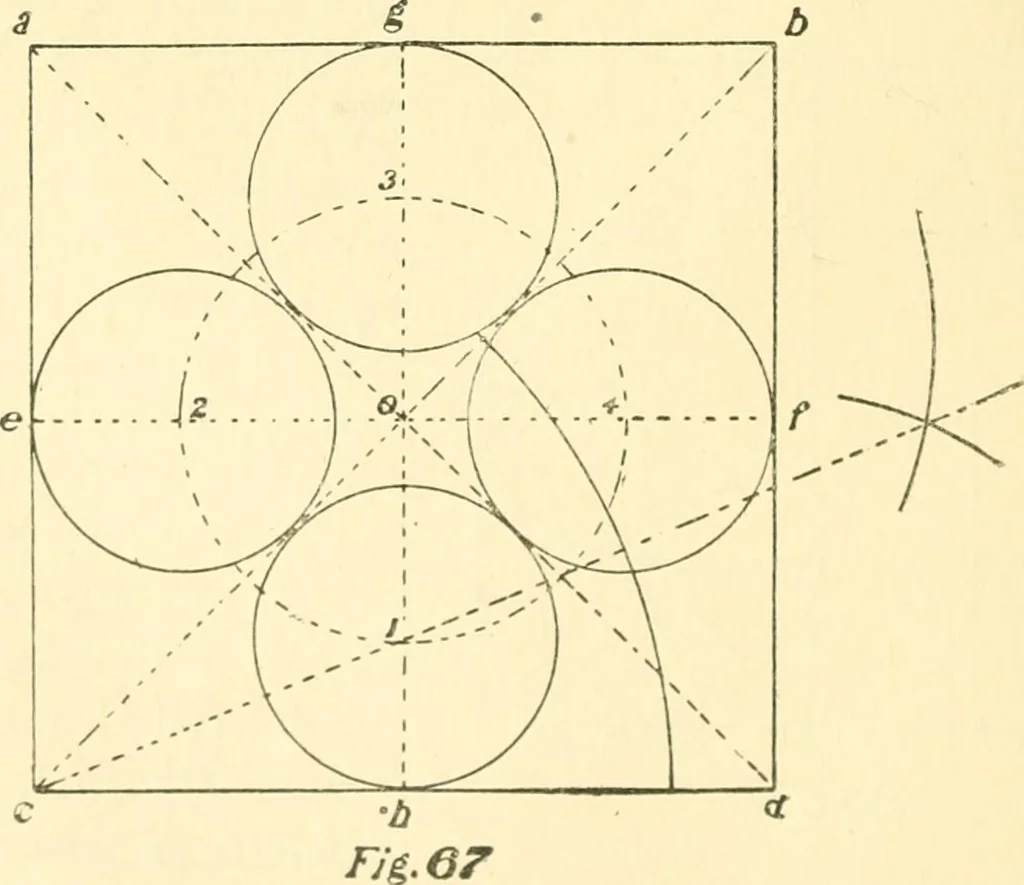

tOR CARPENTERS AND MECHANICS. 53 in Fig. 67. Bisect the angle 0 c d by the Hne c i, cutting^ // in I; with 0 as centre and 0 i as radius draw a circle,thus finding points 2, 3, 4, w^hich are the centres and i hthe radius of the desired circles. 64—Within a Given ^ ^ .^ Square to Draw FourEqual…
