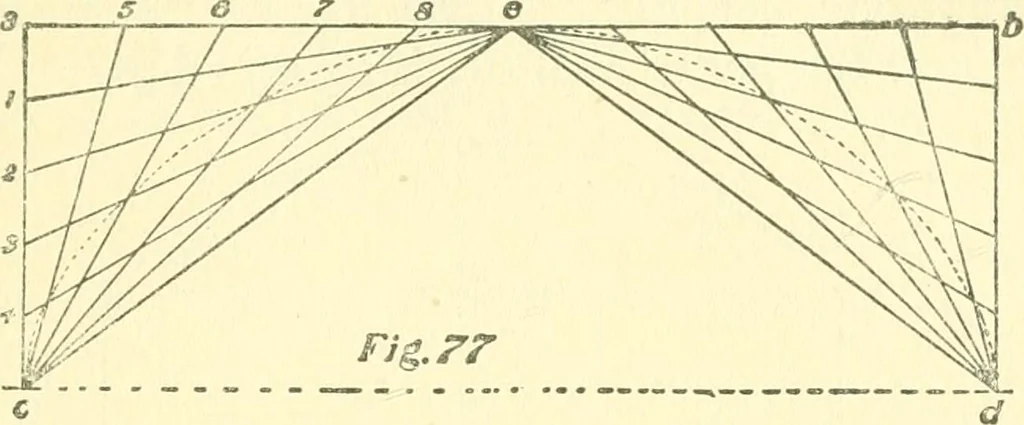

FOR CARPENTERS AND MECHANICS. 59 e b; then divide a e and a c into the same number of equalparts, as i, 2, 3, etc.; then draw lines from c to 5, 6, 7, etc.;then draw Hnes from ^ to i, 2, 3, etc.; then draw thecurved Hne through the intersections, as shown. … 73—To Draw an Ellipse with a String.—Drawthe long diameter, Fig. 78, as a b; then half the short di-ameter, as c d; then, with c as centre and a d 2iS radius,describe arcs bisecting a b ^i i and 2, at which points drivea nail to fasten the string; then fasten the string at i andstretch to c, at…
