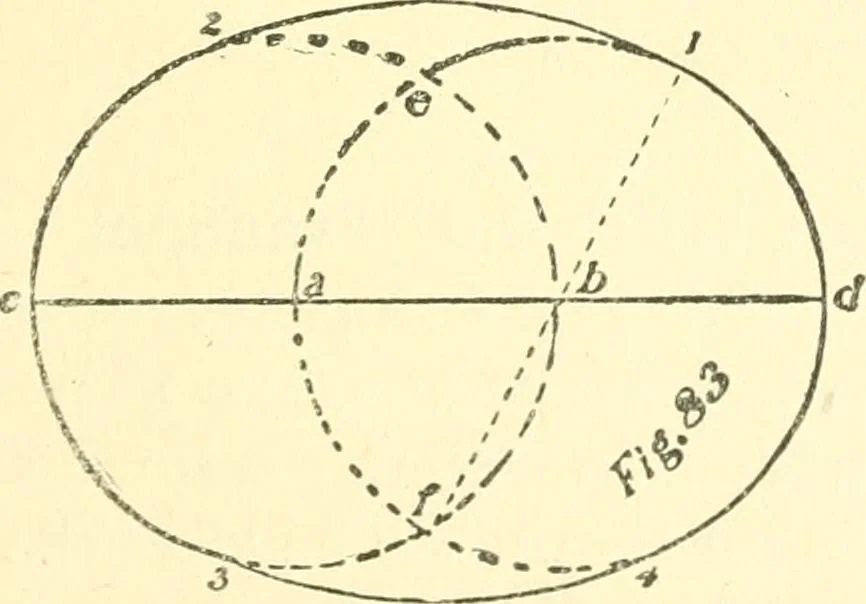

each side of d e; with samecentre and radius/^ draw arcs intersecting those drawn.Then take any point between b and 2 and repeat the above operation; then take anyother point between b and 2and repeat until you haveas many points as desired ;then through these pointsdraw the curve. 78—To Draw a… … 62 GUIDE AND ASSISTANT /and e as centres and/ i as radius draw arcs i 2 and 3 4,thus completing the curve. 79—When the Two Axes are Given, to Draw aCurve Approximating an Ellipse.—With ^ ^^ as themajor axis and a g the minor axis, Fig 84, draw lines con-necting a d and a c; then, with b as centre…
