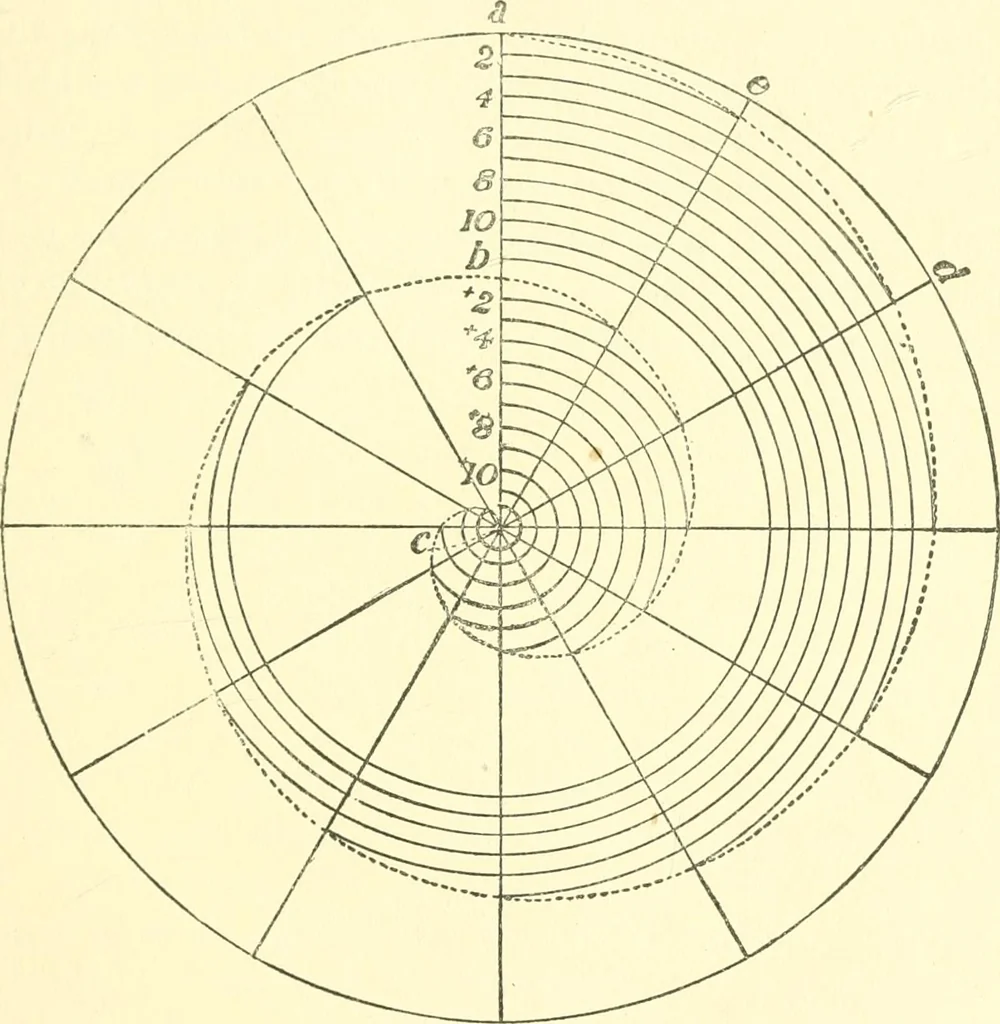

FOR CARPENTERS AND MECHANICS. 67 an indefinite line, as a b, Fig. 91; then take any point ascentre and the radius of the small semi-circle, as i 2; with2 as centre draw the semi-circle, i 3; then, with i as centreand I 3 as radius, draw the semi-circle 3 4; then, with 2 ascentre and 4 2 as radius,… … n§, 03. 86—To Draw a Spiral of One Turn.—First drawa circle, Fig. 92, as large as the spiral is to be; then divideit into any number of equal parts (in this case twelve), aslines a d c, etc.; then divide any one of these lines into asmany equal parts as the circle is divided; then with centrec and…
