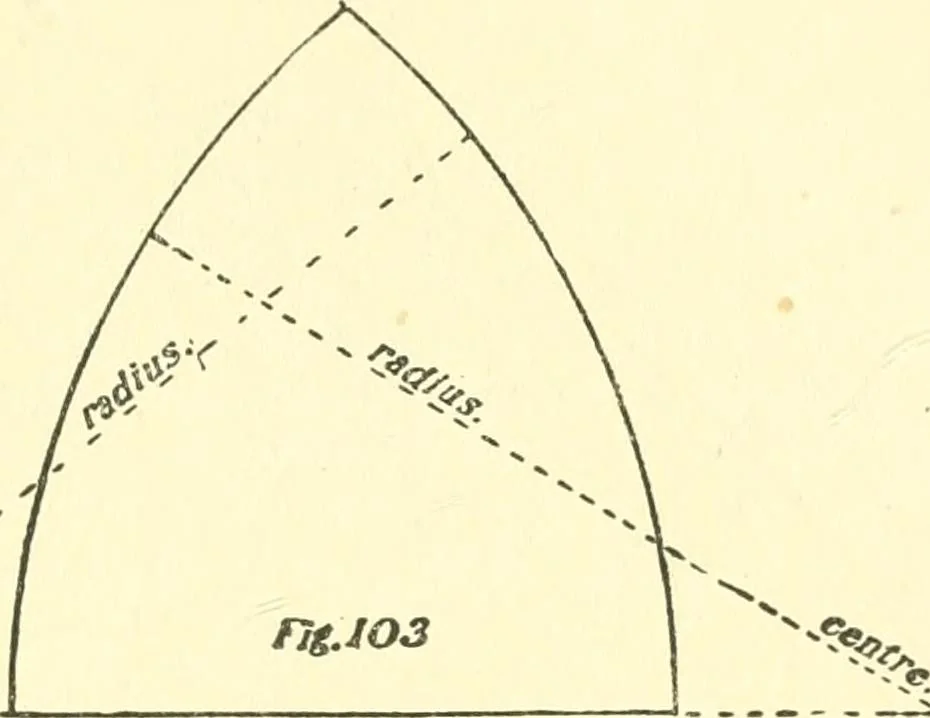

FOR CARPENTERS AND MECHANICS. 17 96—Lancet Gothic Arch.—A lancet Gothic arch isone whose radius is greater than its width, as shown inFig. 103. j^^- f.6»:r_. … 97—To Draw the Gothic Elliptical Arch.—Divide the span a b into three equal parts at c and d, Fig. 104; with ^ ^ as radius and a,c, d, b as centres draw thearcs, as shown, findingpoints e and f; now,from e and f draw linesthrough c and d, as shown;with c and d as centresand a c 2is radius drawarcs…
