"Roentgen" induction coils and other X-ray apparatus (1903)
James G. Biddle Company · Philadelphia : James G. Biddle · leaf 21

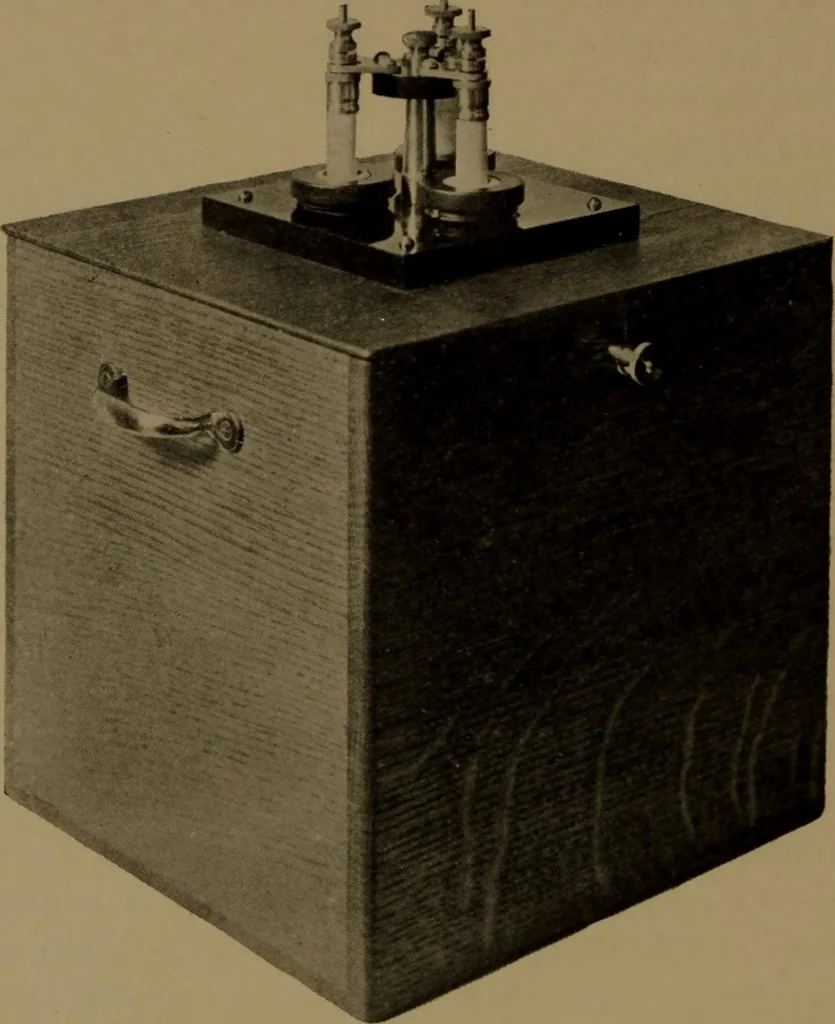

ble rubber tube connections. Requires no An interesting and gratifying fact about the Elec- Condenser. trolytic Interrupter is that it does not require anycondenser, as must be used with the various forms of mechanical ormercury interrupters. This greatly reduces the expense of the inter-rupter,… … Figure 9. Roentgen Three-Anode Electrolytic Interrupter. THIS form of the electrolytic interrupter is designed to be placedsome distance away from the coil itself. Each of the three anodeshas its corresponding point on a three-point switch, mountedupon the coil so that the operator may use any one…
X-rays · Induction coils · Radiography
