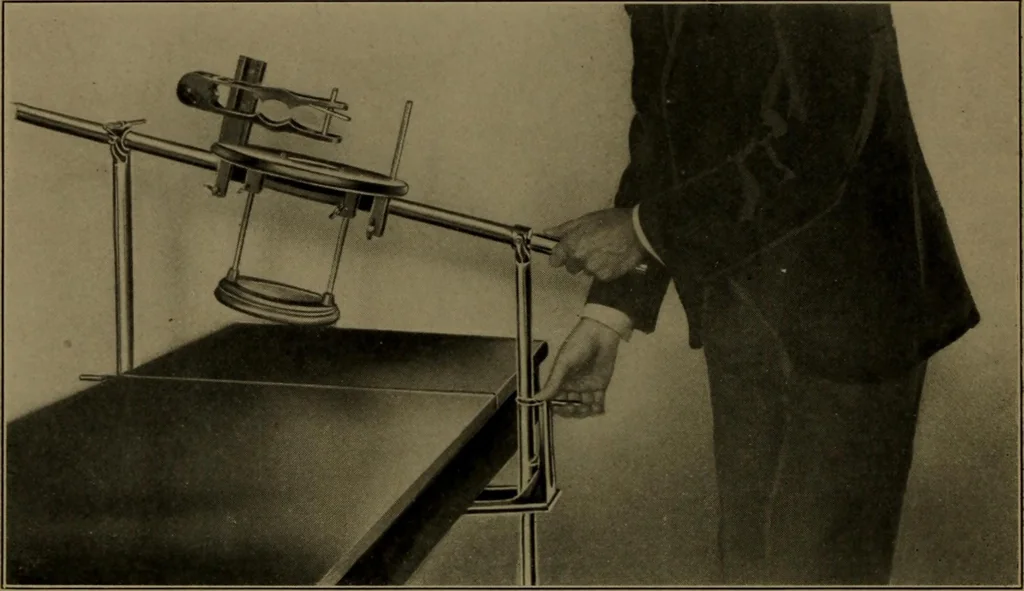

d withthe left hand the clamp is released and the rod can be adjusted upor down as desired. The clamp is so made that it will permit thecompression to be pushed down, but it prevents it from beingpushed back up again unless the clamp is released, as in theillustration. A small friction brake… … Figure 3.—Adjusting Compressor Incorrectly. Convenience inSetting. This makes the setting of the compressionvery convenient. The carriage is readilypushed to the end of the table to permit thepatient to get on the table. The compression apparatus is thenpulled back over the patient. After the…
