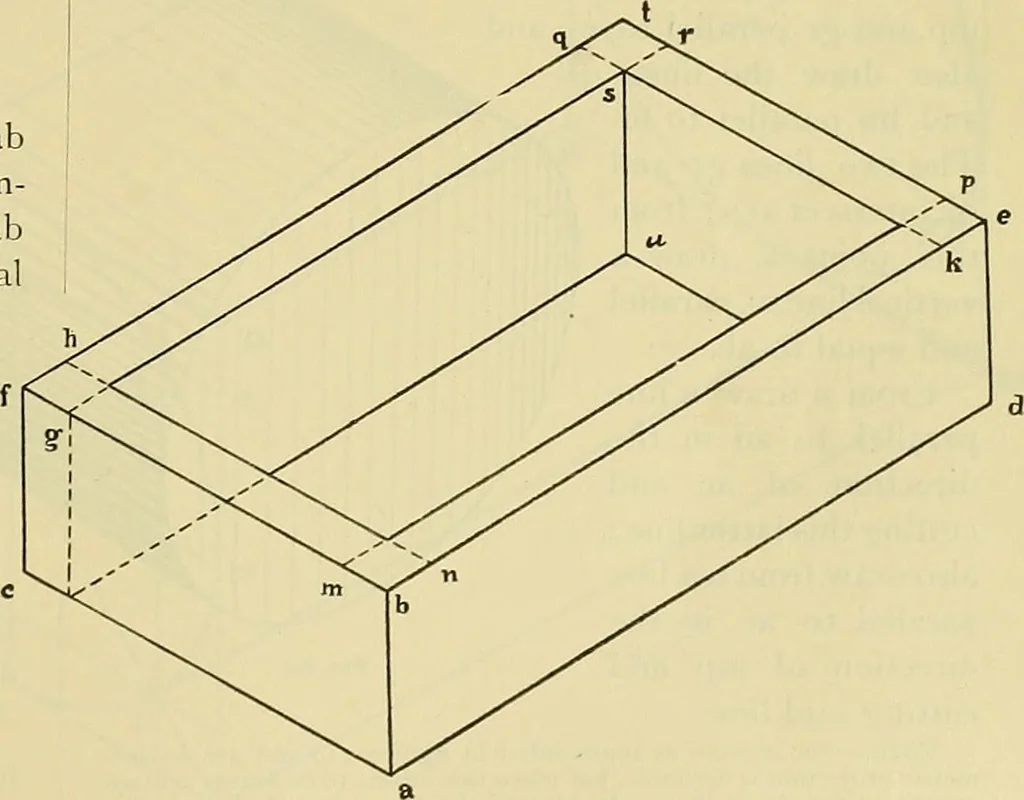

be equal and parallel to bf ; from thepoint of intersection g draw the vertical line gk,from c and d draw the lines cb and dk, respect-ively, and parallel to ad and ac. To draw a rectangular frame made 0/wood y^thick, the outside dimensions being 16 long, 8 wideand 2 deep, as shown in Fig. 211.… … FlG.I-ll. 116 ROGERS DRAWING AND DESIGN. Now draw the lines cf and de equal and parallelto ab and then draw the lines fb and eb, equal andparallel to ac and ad, respectively. From the pointf draw ft equal and parallel to ad. Next join the points e and t and the line et willbe parallel and equal to…
