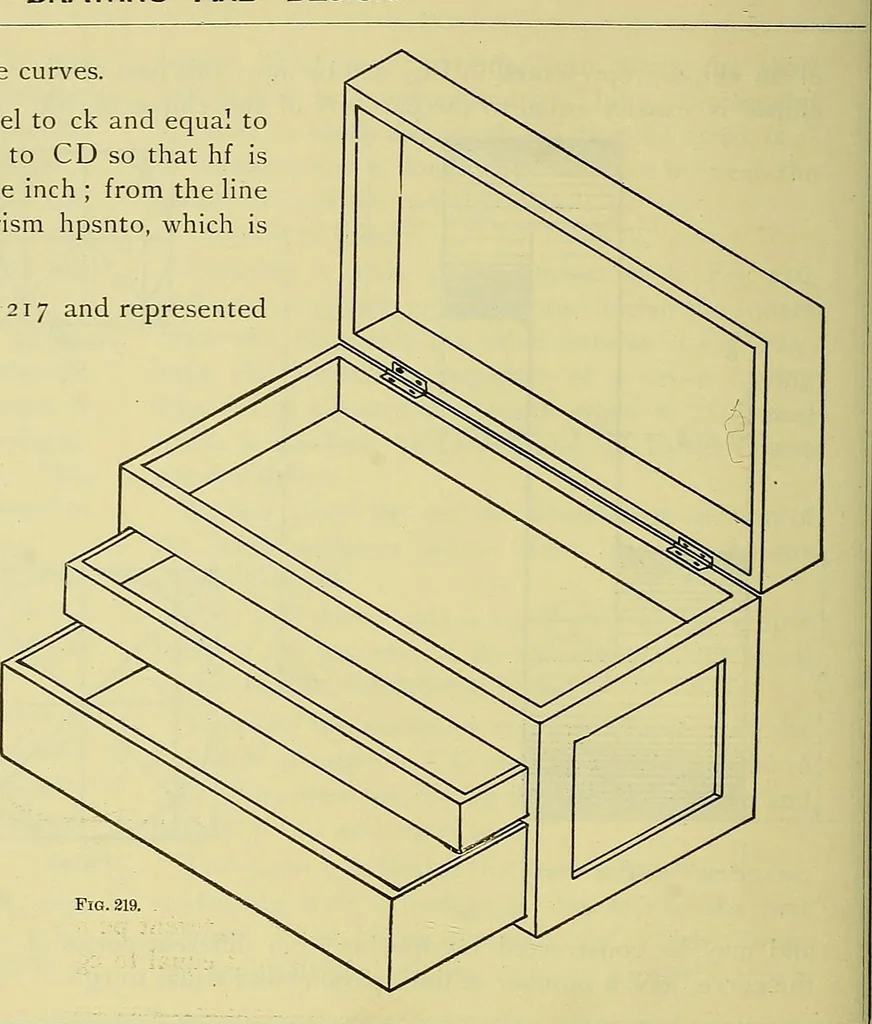

Fio. 218. 120 ROGERS DRAWING AND DESIGN. … The line uj is a tangent to both of these curves. From the point g draw the Hne gf parallel to ck and equal to2^; through f draw the line hp parallel to CD so that hf isequal to fp, each of these being equal to one inch ; from the linehp draw the isometric projection of the prism hpsnto, which isto…
