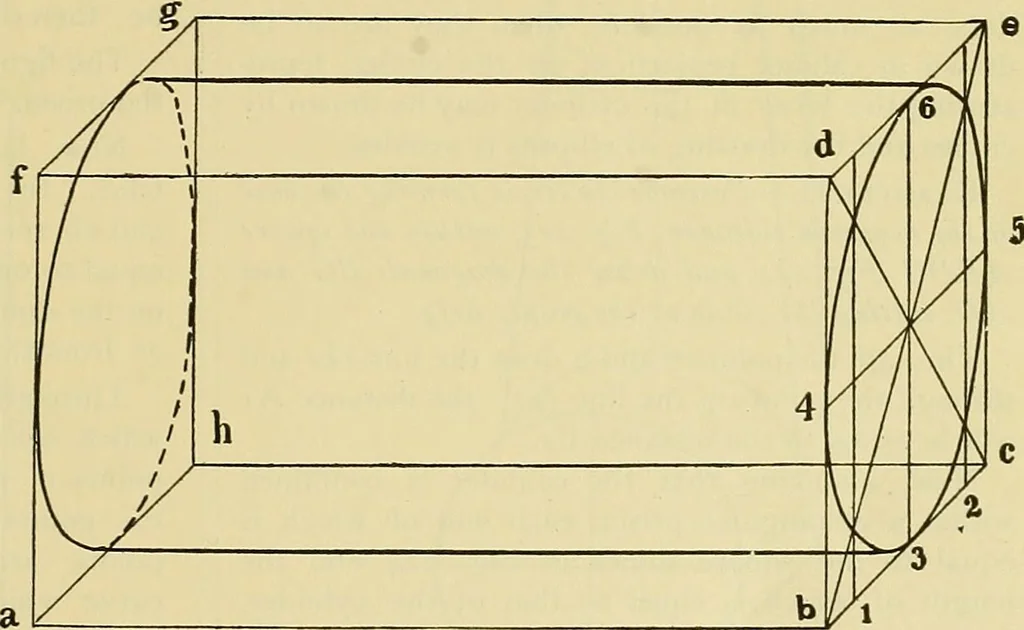

The length of theframe, 16 inches in actual measurement, is repre-sented here on the 45° axis by only one-half of itsactual size or 8 inches long ; all theother measurements are equal to theactual sizes of the object, as describedon page 122. zontal axis ; 3, parallel to the vertical axis, that… … Fio. a). To draw a right cylinder in cabinet projectioti, itsbase to be the circle shown in Fig. 22^. The cylinder may be placed in the following po-sitions : I, parallel to the 45° axis; 2, parallel to the hori- ExAMPLE I.—Draw in cabijiet projection, theprism abcgfedh. Fig. 22j, enclosing the…
