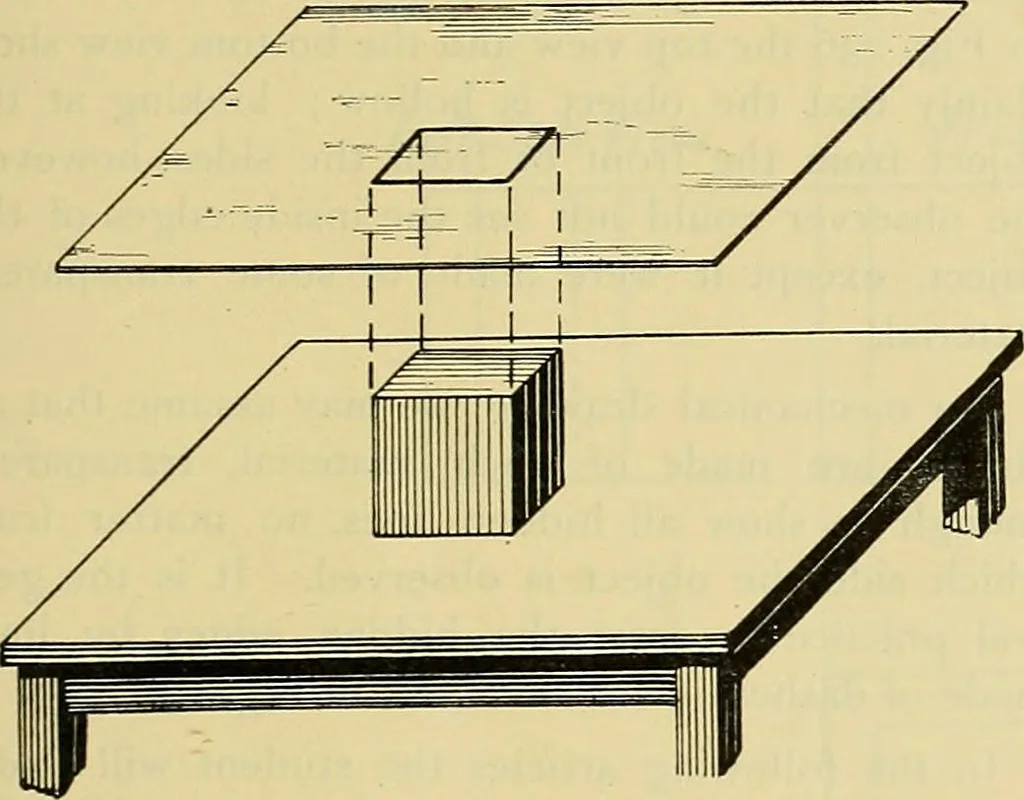

Fig. 2:«. a square) which is the view of the object as seenfrom the front. This view is called the front eleva-tion. - One view, however, is not sufficient to show thereal form of a solid figure. In a single view two ROGERS DRAWING AND DESIGN. 129 dimensions only can be shown, length and… … Fig. ast. 234, and looking at it from above, directly overthe top face of the cube, trace its outline upon thepane ; as a result, a square figure is drawn upon theglass, which corresponds to the appearance of the cube, as seen from above. This square on the glassis the top view of the cube, or its…
