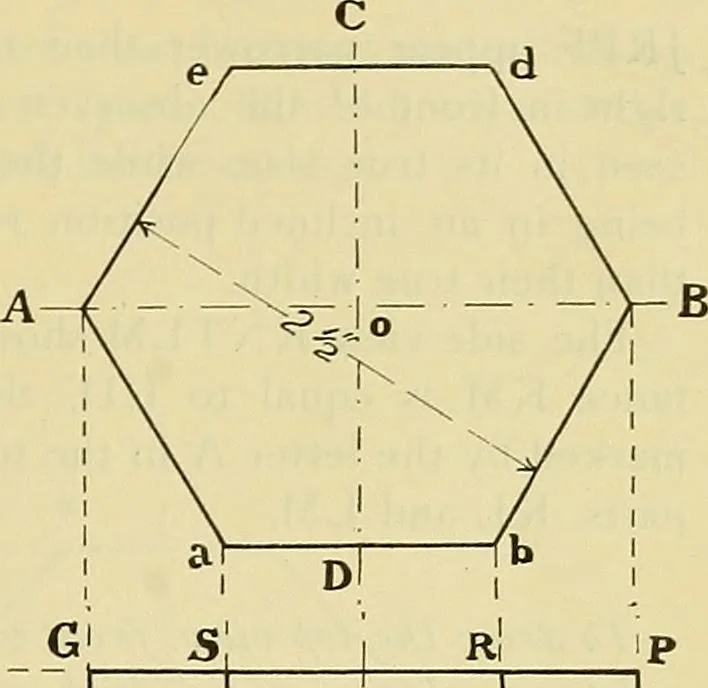

gon, parallel tothe lines eb and ad. The hexagon,aAedBb shows the top view of the prism. To draw the front view proceed as fol-lows : Through the points Aab and B drawthe vertical lines AE, aH, bj and BF. Draw the horizontal line NGP, makePF equal to 5, the height of the prismand through the point… … ^ K M Fig. 245. E H 138 ROGERS DRAWING AND DESIGN. JRPF appear narrower than the face HSRJ, the latter being situatedright in front of the observer and parallel to the plane of the paper isseen in its true size, while the other two faces seen in the front viewbeing in an inclined position relative…
