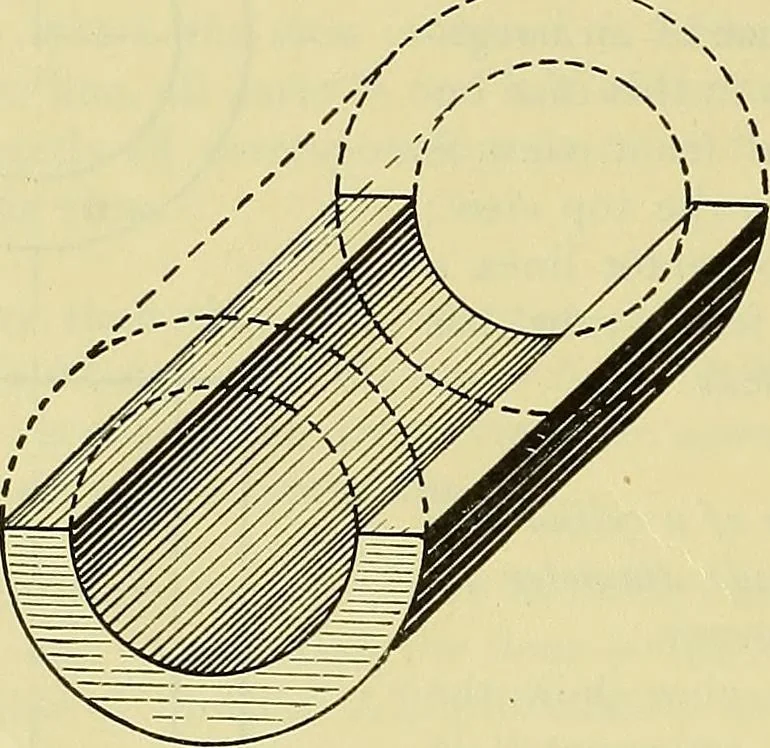

Fig. 230. 142 ROGERS DRAWING AND DESIGN. such misunderstanding as to the true nature of theobject represented. This may be done by representing the front viewof the pipe as if it were cut in half like the cylinder … Fio. 2r,i. shown in Fig. 251 ; a front view of such a pipe cutin half is shown in Fig. 252 ; the top view is that ofa whole pipe. The line 1-2 shows the manner inwhich the cylinder is supposed to be cut, and iscalled the line or plane of section. The front view in Fig. 252 we call the sectionview…
