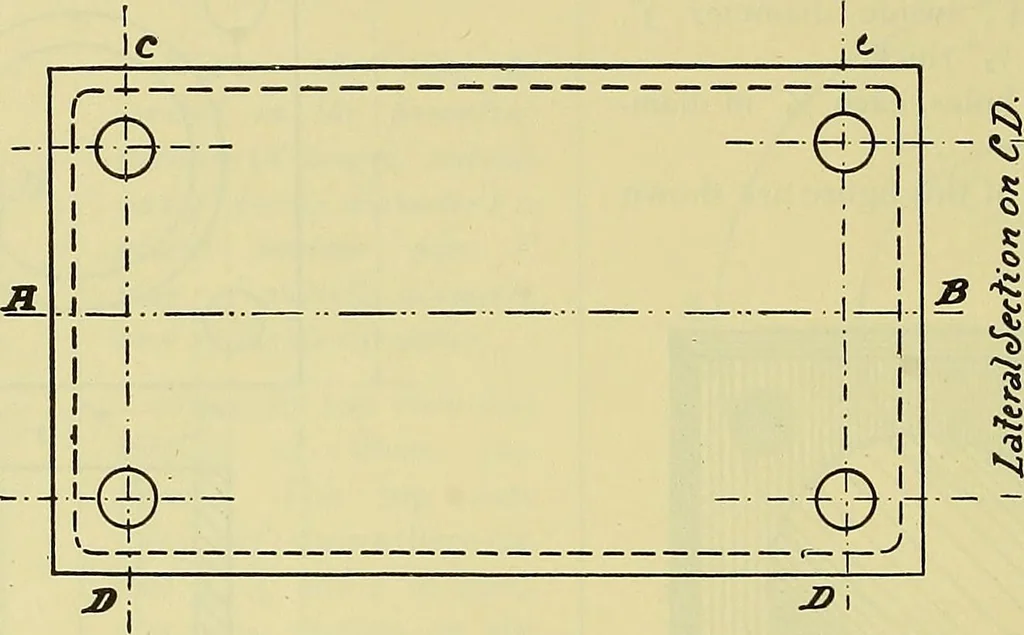

146 ROGERS DRAWING AND DESIGN. Fig. 261 shows the top view and two sections of abed plate. view, is a section parallel to the short side of the bedplate and is called a cross section or a lateral section. … Jiongitudina? <Seciion on JiS. V/VXA/^//-. ^22\ Y^zz 6 Fio. 2(il. The longer section which shows the appearanceof the bed plate when cut in a plane parallel to thelongest side of it, is called the longitudinal section.The other section, placed to the right side of the top In Fig. 262 is shown a…
