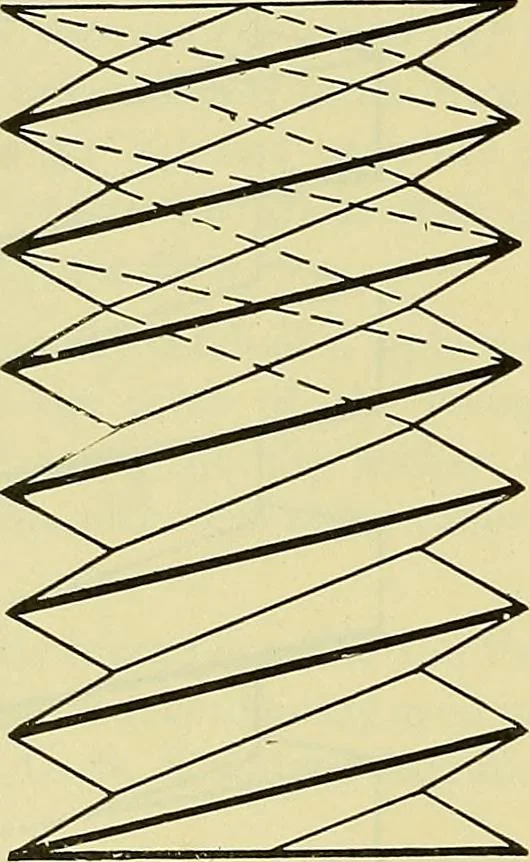

diameter measured atthe root of the thread is called the inside diameter. In the foregoing table of U. S. Standard ScrewThreads, the number of threads to one inch of screwto 4 in diameter. is given from i^ 234 ROGERS DRAWING AND DESIGN. The third column gives the diameter of the screwat the root,… … Fig. 338. . The screw thread is formed with straight lines atan angle of 60° to each other. The top and bottomof the thread are flattened, each to a width of ^^thof the pitch, Fig. 343. For small diameters of bolts the amount of flat-tening is not made to any particular measure, and in drawing…
