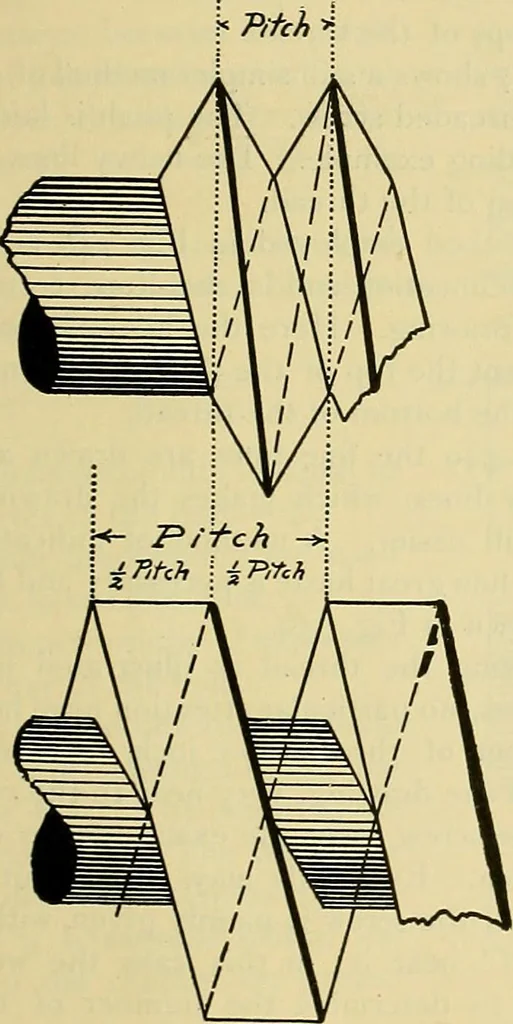

Fig. 339. In a square-threaded screw of U. S. Standardform, the width of the thread is equal to the widthof the groove—each equal to one-half the pitch, Fig- 344- The depth of the thread is also equal to one-halfof the pitch—that is, equal to the width of the groove. ROGERS DRAWING AND DESIGN. 235… … Figs. 340 and 341. Fig. 346 represents a single square-thr aded screw.To draw the screw, first draw the cylinder. Lay offdistances each equal to one-half the pitch and throughthe division points draw lines at right angles to theaxis of the cylinder, and cutting the other side ofthe cylinder, the…
