Rogers' drawing and design; an educational treatise relating to linear drawing; machine design; working drawings; transmission methods; steam, electrical and metal working machines and parts; lathes; boiler and parts; instruments and their use; tables, etc (1913)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 231

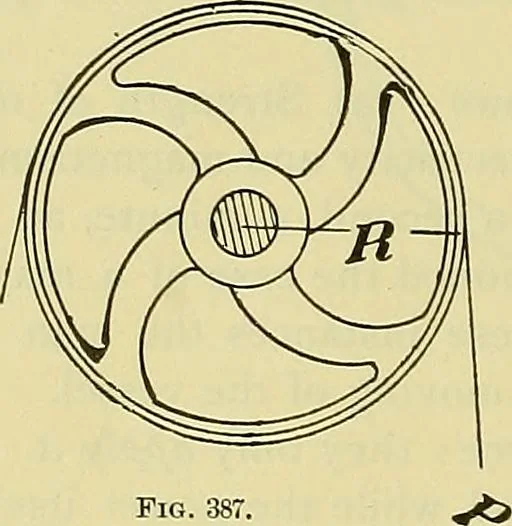

at the pitch-circle of the gear-wheel a twisting strainis produced on the shaft, this twisting strain causesa combination of stresses within the fibres of the … Fig. 38: shaft, which mainly consist of shearing stress. Theshearing stress is equal to nothing at the center of theshaft and it is greatest at its circumference. The twisting strain is obtained by multiplying the lengthof the lever, or the perpendicular distance from thepoint at which the force is…
Mechanical drawing · Machine design
