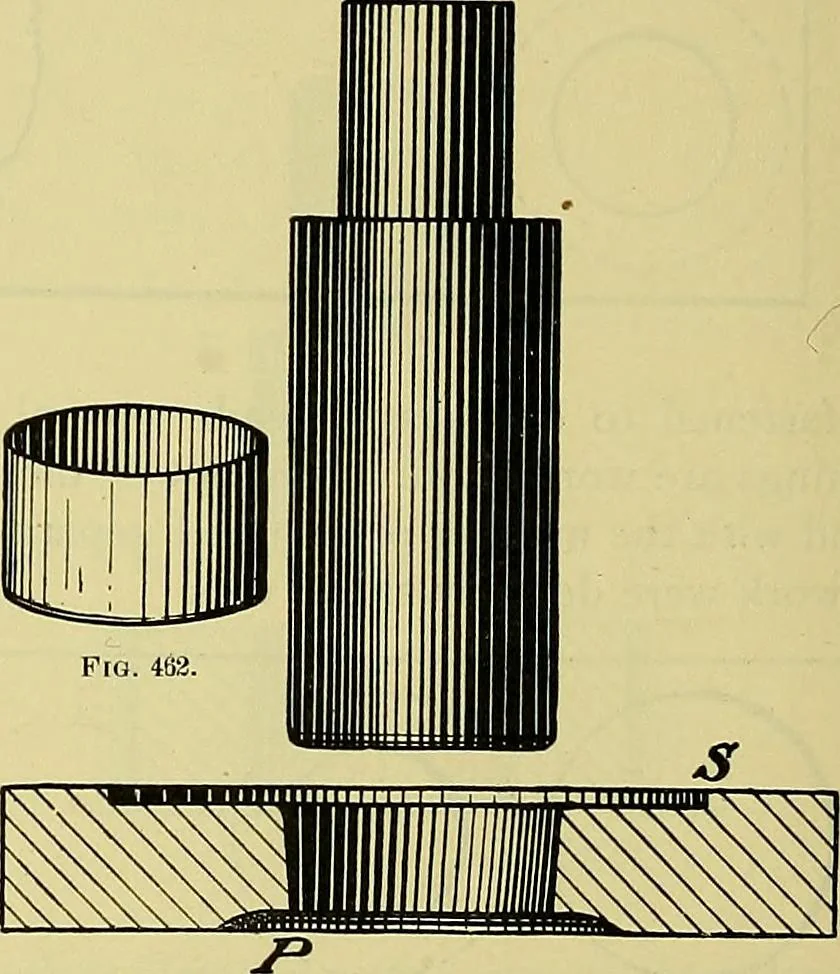

0. their upward stroke. It is evident that the metalmust be fed below the stripper. Fig. 461 shows the simplest form of a drawingpunch and die. The flat circular blank. Fig. 460,is placed upon the die so as to fit the set edge S,and is pushed through the die by the punch. Whilethe punch returns… … Fig. 461. Fig. 462 shows the shell. This simple form of adrawing die should be used only on shallow work,to avoid crimping around the edge of the shell.When the blank is held firmly while being drawn,the crimping even on deeper work may be avoided. ROGERS DRAWING AND DESIGN. 311
