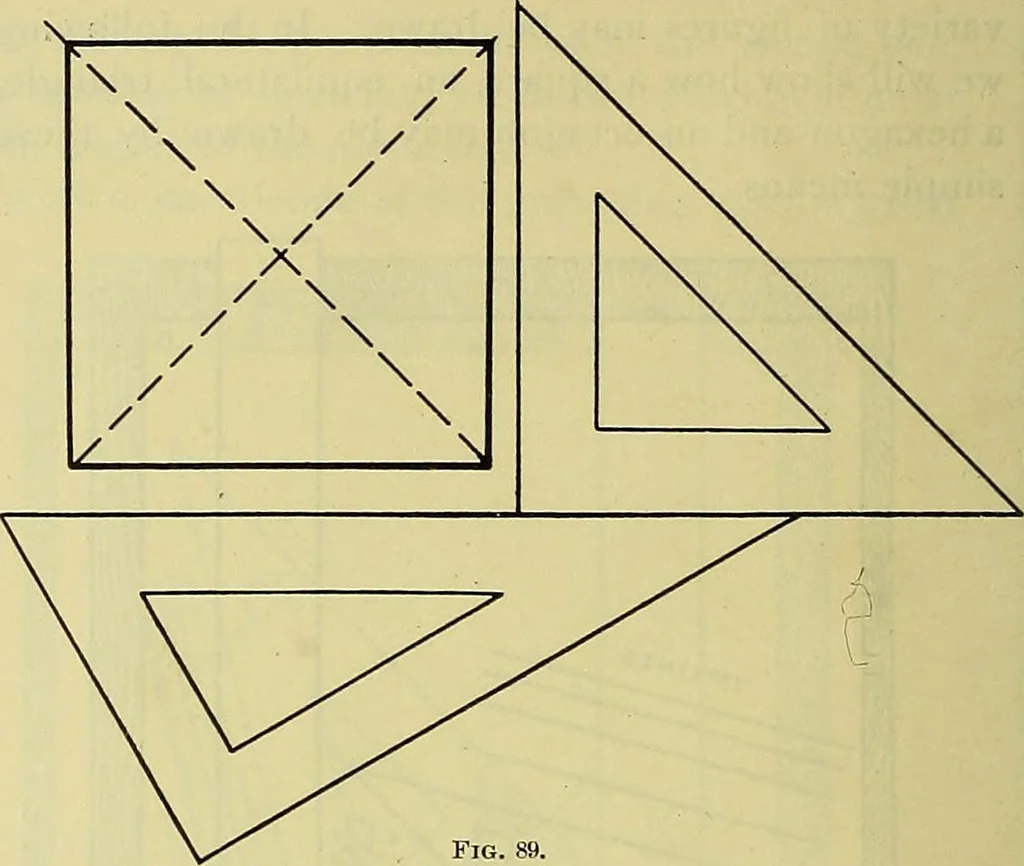

ROGERS DRAWING AND DESIGN. … Let it be required to draw a four-sided planefigure, all sides of which are equal and all its anglesright angles. Such a figure is called a square. If the sides of the required square should beparallel to the edges of the drawing board, we thendraw a horizontal line by means of the tee-square.Fig.…
