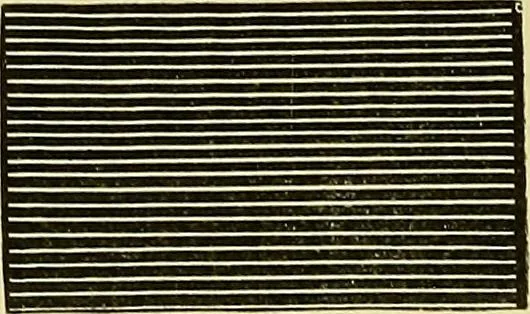

Fig. 140. Fig. 141. Fio. 142. If the plane is parallel to the plane of the paper,the shading lines should be drawn with equal spacesbetween them throughout the full width of the plane.If the shaded plane is inclined to the plane of thepaper it is shaded by a number of lines, with thespaces between…
