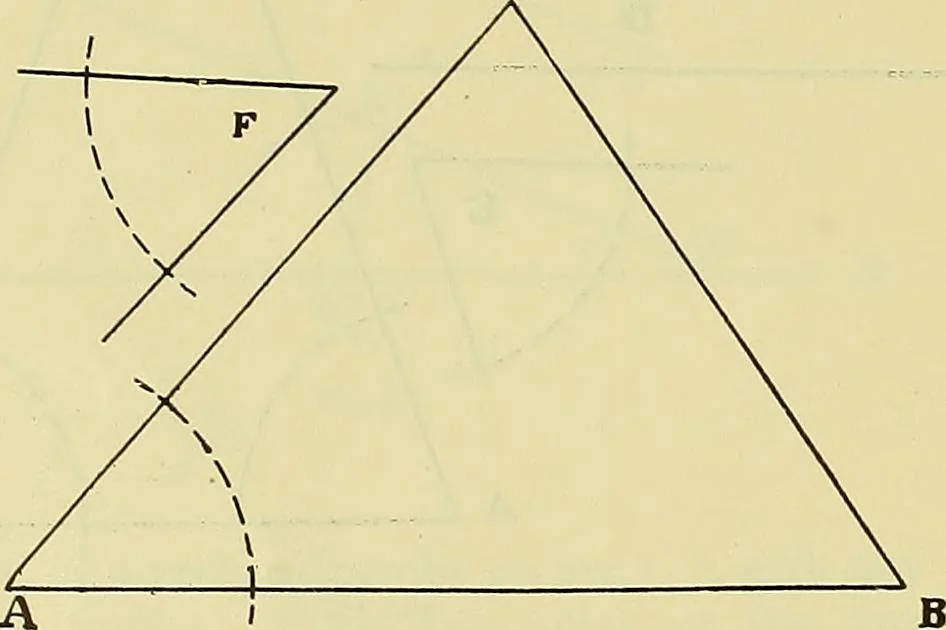

Fig. 178. Draw a line, AB, equal to the given line D. Atthe points A and B construct angles equal to thegiven angle E. Continue the sides of the anglesuntil they meet at C ; then ABC will be the re-quired triangle. 94 ROGERS DRAWING AND DESIGN. Two sides and the angle between them being givento… … Fig. 179. Draw a line, AB, equal to D, and at the point Aconstruct an angle equal to F and make AC equalto E. Join the points C and B by a straight line,and ABC will then be the required triangle. Two sides and the (Lngle opposite one of them beinggiven to construct a required triangle. Let D and E…
