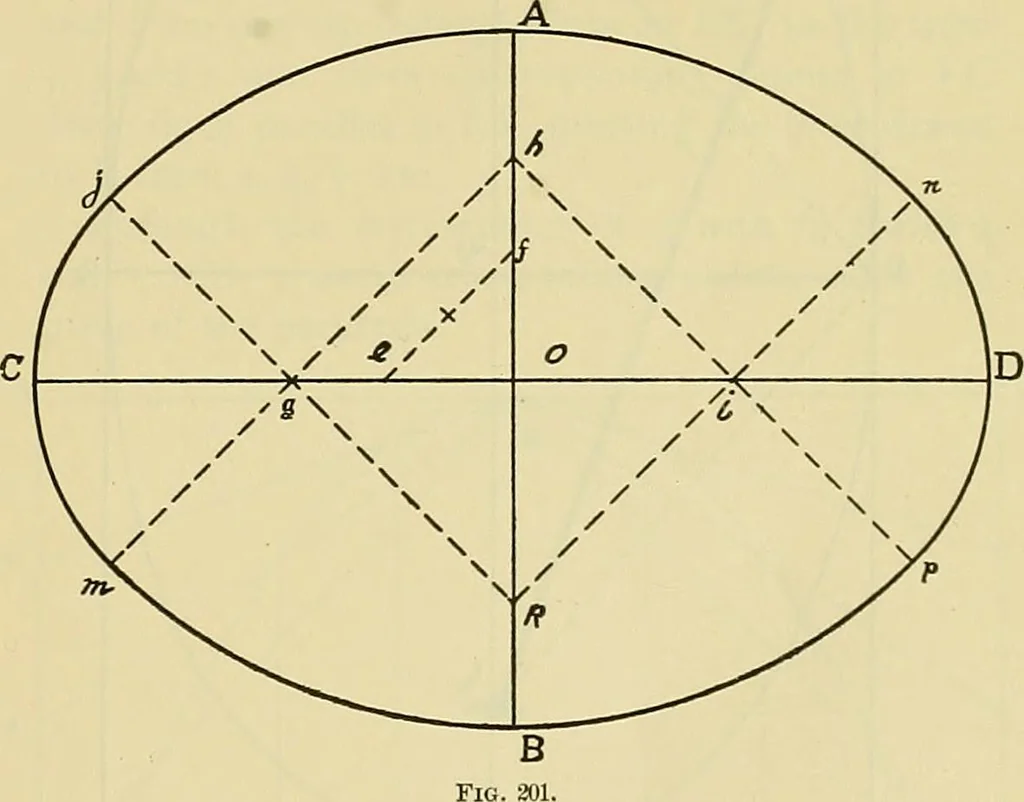

n. To drazv an oval by circular arcs. Let CD be the major axis and AB the minoraxis of the oval, Fig. 201. Find the difference of the semi-axes and set it offfrom O to e and f on CD and AB. Bisect ef andset off one-half of it from e to g and draw ghparallel to ef. From the center O on CD lay off… … as a radius and R and h as centers draw the arcsjAn and mBp meeting the small arcs in the pointsj and n and m and p. The figure AnDpBmCjis the required oval. 106 ROGERS DRAWING AND DESIGN. MECHANICAL METHOD. Draw a line AB equal to the major axis of the y^ ^ ^^\ / ^ ^ \ required ellipse, Fig. 202.…
