A rudimentary and practical treatise on perspective for beginners : simplified for the use of juvenile students and amateurs in architecture, painting, etc., also adapted for schools and private instructors (1866)

Pyne, George · London : Virtue Brothers & Co. · leaf 176

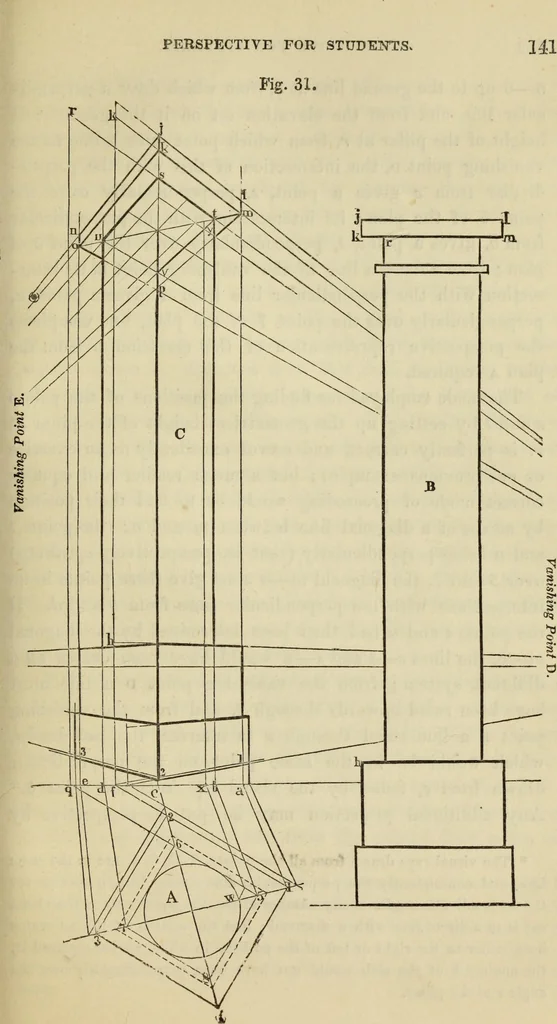

An illustration from A rudimentary and practical treatise on perspective for beginners : simplified for the use of juvenile students and amateurs in architecture, painting, etc., also adapted for schools and private instructors, 1866, leaf 176 — er the point 3. Draw a line from thepoint m to the vanishing point E, and from o to the vanish-ing point D, intersecting each other in the point p, thenm, />, o would be the representation of the under surfaceof the-slab or capital on the top of the square pillar, per-pendicularly over the… … 142 PERSPECTIVE FOR STUDENTS. 5—6 up to the ground line at q, from which draw a perpendi-cular line, and from the elevation set on it the geometricalheight of the pillar at r, from which point draw a line to thevanishing point d, the intersection of this with the perpen-dicular from c gives a…
