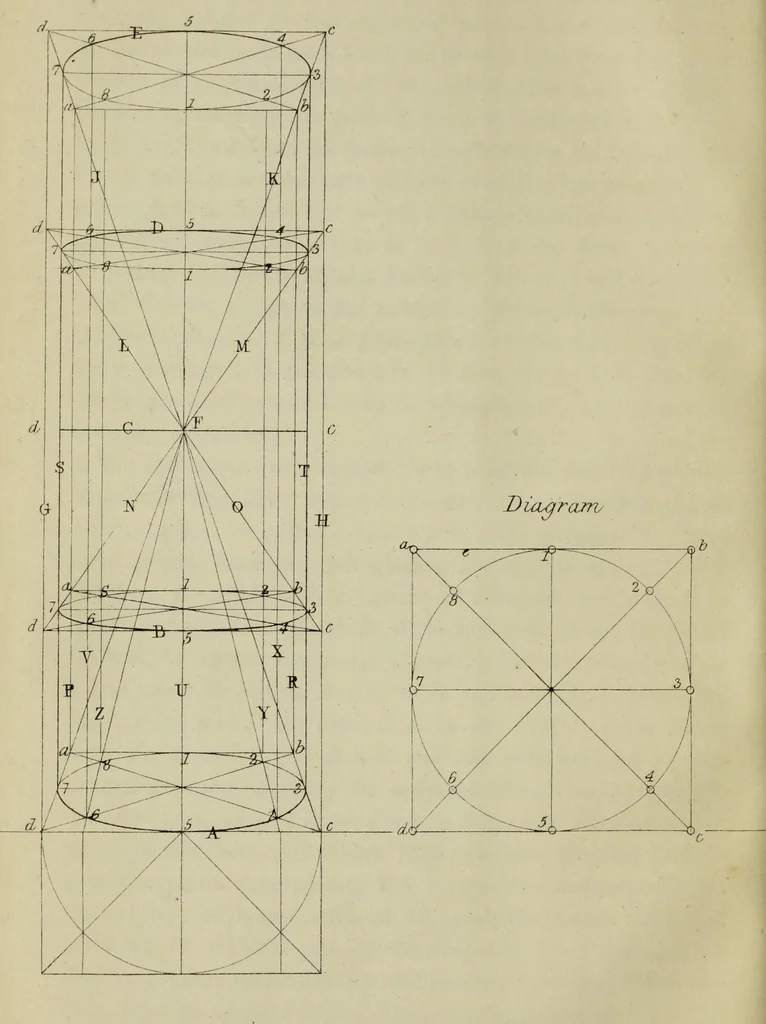

An illustration from A rudimentary and practical treatise on perspective for beginners : simplified for the use of juvenile students and amateurs in architecture, painting, etc., also adapted for schools and private instructors, 1866, leaf 71 — m each of these points a line must be ruled to thepoint of distance, and where they intersect the line D theygive the points determining the perspective distances of thethird from the second arch at 13, and the fourth from thethird at 14. The mode of drawing the third archway issimilar to that… … PERSPECTIVE FOR STUDENTS. 45 point 13 on d to the line c ; whereas the second arch wascommenced by drawing a perpendicular line down from thepoint 6 on c to the line D. To draw the third archway,raise a perpendicular line from the point 13 till it meet theline c at 15 ; from 15 draw a horizontal…
