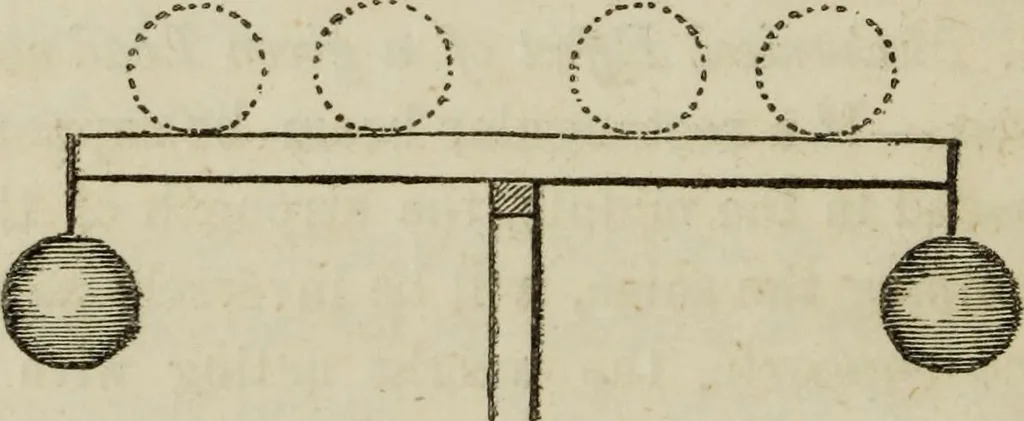

(fig. ([2). In each of the above cases the beam will beardouble the load if it be equally distributed over its whole Fig. 72. … lengthy as shown by the dotted lines ; and lastly, the strengthof a beam firmly fixed at the ends is to its strength wheoloosely laid on supports as 3 to 2 {see fig. 7S Fig. 7S. ART OF BUILDING* 105 These results may be simply expressed thus :Let 5 be the weight which would break a beam of…
