Rudiments of the art of building : represented in five sections [...] for the use of architects, builders, draghtsmen, machinists, engineers and mechanics (1853)
Bullock, John · New York : Stringer & Townsend · leaf 56

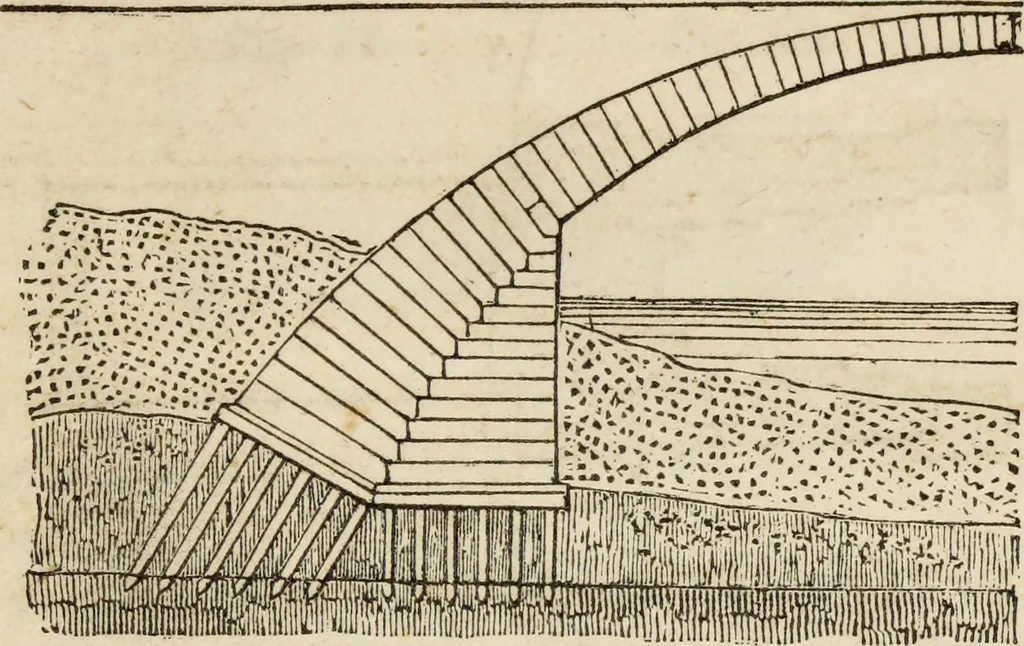

th blocks of stone until it is nearly com-pleted. Centres of this kind are always costly, and affordlittle facilities for easing. 79. Abutments.—The tendency of any arch to overturn itsabutments, or to destroy them by causing the courses toslide over each other, may be counteracted in three… … being thrown on the wing walls, which act as but-tresses (fig. 24.) 3d, where neither of these expedients Fig. 25.
Building
Internet Archive · Getty Research Institute · Public Domain Mark 1.0. Free to use for anything.
![An illustration from Rudiments of the art of building : represented in five sections [...] for the use of architects, builders, draghtsmen, machinists, engineers and mechanics, 1853, leaf 56](https://img.insideoutlibrary.com/img/1024/ia-rudimentsofartof00bull-56-18.webp)
